    大傾角皮帶式輸送機廣泛用于煤炭、冶金、建筑、糧食、化工、電力等部門。大傾角帶式輸送機具有通用帶式輸送機結構簡單、運行可靠，維修方便等優點，具有可大傾角(90度垂直)輸送、結構緊湊、占地少等特點，輸送傾角為0°～90°范圍內，最大垂直輸送物料粒度為400mm。大傾角帶式輸送機是大傾角(或垂直)輸送的理想設備。通過多年的不懈努力，大傾角皮帶機提升高度(最高已達203m)、大輸送能力(最大已達6000t/h)，在井下采礦工程、露天采礦、大型自卸船等方而都有所采用，并在國內首創用于鋼廠的高爐上料產生了良好的經濟效益。
    Big dip angle belt conveyor is widely used in coal, metallurgy, construction, food, chemical, electricity and other departments.Big dip Angle belt conveyor with the general belt conveyor of simple structure, reliable operation, convenient maintenance etc, and has large angle (90 degrees) vertical transmission, compact structure, covers an area of less, within the scope of transmission angle of 0 ° ~ 90 °, the maximum vertical conveying material particle size is 400 mm.Big dip angle belt conveyor is angle (or vertical) an ideal equipment.After years of unremitting efforts, big dip angle belt conveyor hoisting height (maximum 203 m), large transmission capacity (maximum 6000 t/h), underground mining engineering, open-pit mining, large self-unloading vessels such as parties, have been adopted, and in the domestic first used in steel mills produced good economic benefit of blast furnace.

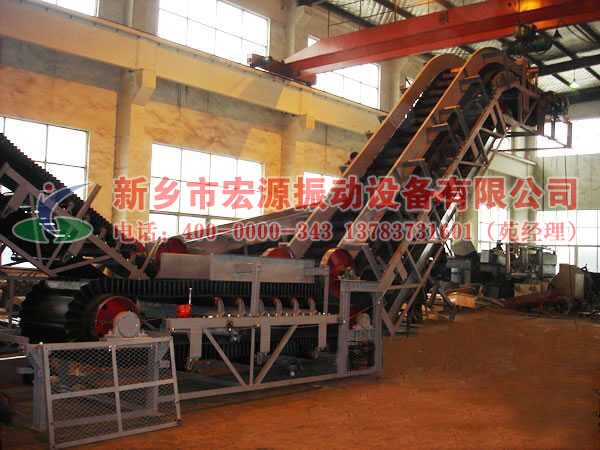

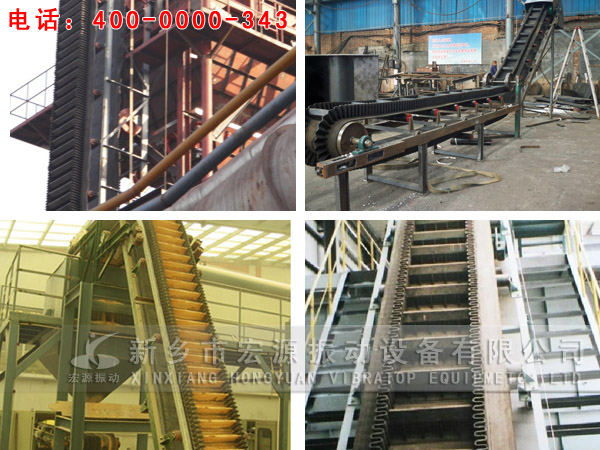

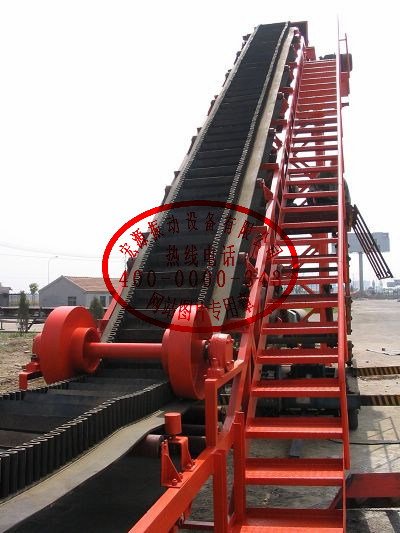

大傾角皮帶輸送機使用現場
Working site

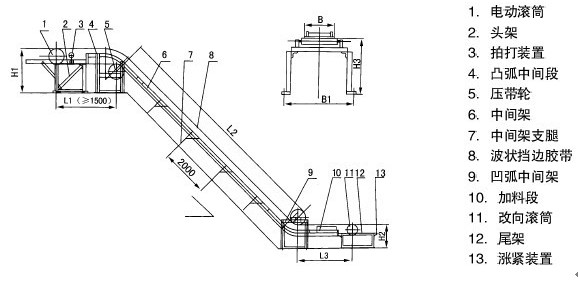

    DJ型大傾角帶式輸送機(以下簡稱“大傾角”)具有通用帶式輸送機結構簡單、運行可靠，維修方便等優點，具有可大傾角(90度垂直)輸送、結構緊湊、占地少等特點，因而是大傾角(或垂直)輸送的理想設備。廣泛用于煤炭、冶金、建筑、糧食、化工、電力等部門。通過多年的不懈努力，大傾角皮帶機提升高度(最高已達203m)、大輸送能力(最大已達6000t／h)，在井下采礦工程、露天采礦、大型自卸船等方而都有所采用，并在國內首創用于鋼廠的高爐上料產生了良好的經濟效益。
    DJ type of big dip Angle belt conveyor (hereinafter referred to as the "big inclination") with the general belt conveyor of simple structure, reliable operation, convenient maintenance, with large dip Angle (90 degrees) vertical transportation, compact structure, covers an area of less, so it is (or vertical) transmission of large dip Angle of ideal equipment.Widely used in coal, metallurgy, construction, food, chemical, electricity and other departments.After years of unremitting efforts, big dip Angle belt conveyor hoisting height (maximum 203 m), large transmission capacity (maximum 6000 t/h), underground mining engineering, open-pit mining, large self-unloading vessels such as parties, have been adopted, and in the domestic first used in steel mills produced good economic benefit of blast furnace.

大傾角皮帶機產品的應用范圍

(1)、大傾角皮帶輸送機為一般用途的散狀物料連續輸送設備，但采用的是具有波狀擋邊和橫隔板的輸送帶。因此，特別適用于大傾角及垂直90°輸送。
(2)、該機可用于煤碳、化工、冶金、電力、輕工、糧食、港口等行業，在工作環境溫度為-15℃～＋40℃的范圍內輸送堆積比重為0.5—4.2t／m3的各種散狀物料。
(3)、對于輸送有特殊要求的物料，如：高溫、具有酸、堿、油類物質或有機溶劑等成份的物料，需采用特殊的輸送帶。
(4)、輸送傾角為0°～90°范圍內，最大垂直輸送物料粒度為400mm。

Applications
(1), large dip angle belt conveyor for general purpose material continuous conveying equipment, but it has a wavy guard and diaphragm plate conveyor belt.As a result, especially suitable for the large dip angle and vertical 90 °.
(2), the machine can be used in the coal industry, chemical industry, metallurgy, electric power, light industry, food, port, etc, in the work environment temperature 15 ℃ ~ + 40 ℃ within the scope of delivery the mass density of 0.5-4.2 t/m3 of loose materials for various.
(3), for conveying materials with special requirements, such as: high temperature, acid, alkali, oil substances or organic solvent such as composition of the material, the use of special conveyor belt.
(4), transmission angle of 0 ° ~ 90 °, the largest vertical conveying material particle size is 400 mm.

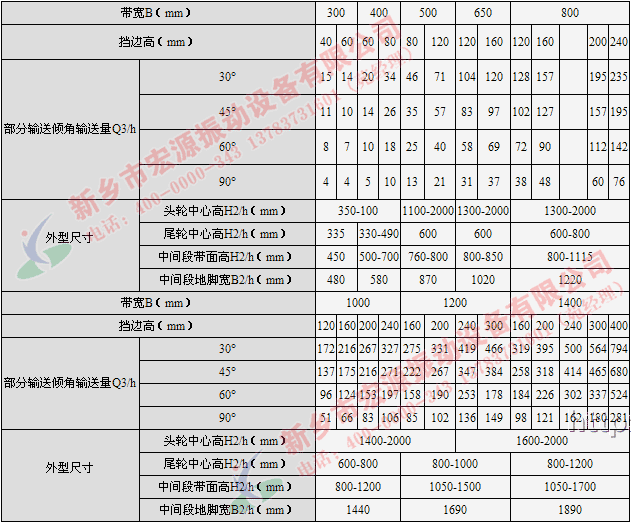

大傾角皮帶輸送機產品主要特點

(1)、可大傾角輸送散狀物料，能大量節省設備占地面積，徹底解決普通、花紋帶式輸送機所不能達到的輸送角度。
(2)、機械化帶式輸送機輸送物料、總體投資費用低，約節約投資費用20％～30％。
(3)、該機型與普通帶式輸送機、斗式提升機、刮板輸送機比較，其綜合技術性能都優越。
(4)、輸送量大，可達6000m3／h，垂直提升高度可達500m。
(5)、在垂直輸送物料時，物料粒度最大可達400mm。
(6)、從水平到傾斜(或垂直)能平穩過渡。
(7)、能耗低、結構簡單、維護方便。
(8)、膠帶強度高，使用壽命長。

Features
(1), can be as big obliquity conveying material, save equipment covers an area of large, completely solve ordinary, decorative pattern cannot reach conveying Angle belt conveyor.
(2), mechanization conveying material belt conveyor, overall investment cost is low, about 20% ~ 30% investment cost saving.
(3), the aircraft with ordinary belt conveyor, bucket elevator, scraper conveyor, whose comprehensive technical performance is superior.
(4), large throughput, up to 6000 m3 / h, vertical hoisting height is 500 m.
(5), in the vertical conveying material, material particle size up to 400 mm.
(6), from horizontal to sloping (or vertical) can be a smooth transition.
(7), low energy consumption, simple structure, convenient maintenance.
(8), adhesive tape, high strength, long service life.


大傾角皮帶輸送機的主要優點

(1)大傾角皮帶輸送機的輸送傾角大，最大可達90°，是大傾角輸送和垂直提升的理想設備。因此可以節約占地面積，節省設備投資和土建費用，取得良好的綜合經濟效益。例如，某用戶欲將煤炭提升到20m高的料倉頂，如采用擋邊機以45°傾角輸送，則機長僅需28.3m(水平機長20m)；而如果采用垂直輸送的擋邊機，那么，水平機長可以控制在6m以內。
(2)結構簡單。如前所述，各主要部件均可與通用帶式輸送機通用，給使用、維修帶來方便。
(3)運行可靠。沒有埋刮板輸送機經常出現的卡鏈、飄鏈、斷鏈現象和斗式提升機經常發生的打滑、掉斗現象。它的可靠度幾乎與通常帶式輸送機相等。
(4)運行平穩、噪聲小。
(5)由于不存在裝料時的挖掘阻力和運行時物料的內摩擦、外摩擦阻力，因此能耗小。例如，在魯南化肥廠使用的兩臺提升高度各為19.28m、輸送能力各為25t／h的輸送碎煤的垂直擋邊機，其每臺的裝機功率僅4kW，而被它們所取代的四臺原有埋刮板輸送機的總裝機功率為44kW。
(6)垂直擋邊機還可以在機頭和機尾設置任意長度的水平輸送段，便于和其他設備銜接。

Advantages
(1) the big dip angle belt conveyor transmission angle is large, the largest up to 90 °, is an ideal equipment to transport of large dip angle and vertical ascending.So you can save area, save equipment investment and construction cost, obtain good comprehensive economic benefit.For example, a user wants to the coal up to 20 m high bunker roof, such as using guard machine with 45 ° obliquity conveying, the captain only 28.3 m (20 m) level of the pilot;Using vertical conveying rim machine, so, horizontal captain can control within 6 m.
(2) simple structure.As mentioned earlier, the main components are common with general belt conveyor, bring convenience to use and maintenance.
(3) reliable operation.Often appear no buried scraper conveyor, disconnection of chain and chain, and the bucket elevator, off the bucket of a spin occur frequently.Its reliability and usually almost equal belt conveyor.
(4) smooth operation, low noise.
Because there is no charge, (5) when the digging resistance and run-time friction materials for external and internal friction resistance, so the energy consumption is small.In southern shandong chemical fertilizer plant, for example, the use of two sets of hoisting height of 19.28 m, the conveying capacity is 25 t/h of the vertical guard crushed coal conveyor, its each installed power only 4 kw, and replaced by their four sets of the total installed power of the original buried scraper conveyer for 44 kw.
(6) vertical penal machine also can be set in the nose and tail of arbitrary length horizontal conveying section, easy to interface with other equipment.
