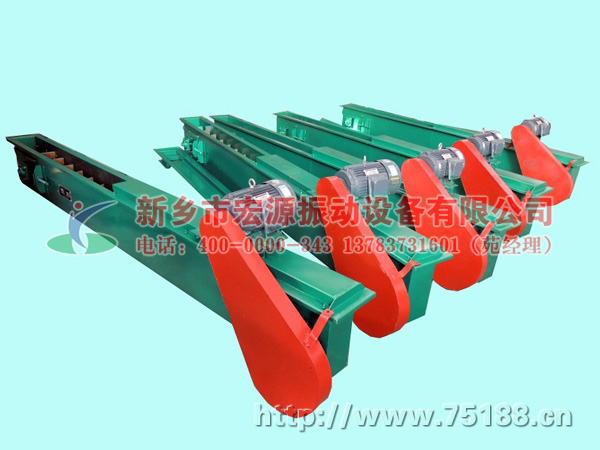

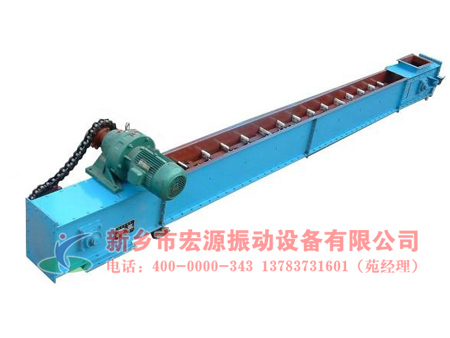

刮板輸送機

刮板輸送機概述

    刮板輸送機采用刮板鏈牽引，在槽內運送散料。在當前采煤工作面內，刮板輸送機的作用不僅是運送煤和物料，而且還是采煤機的運行軌道，因此它成為現代化采煤工藝中不可缺少的主要設備。刮板輸送機能保持連續(xù)運轉，生產就能正常進行。否則，整個采煤工作面就會呈現停產狀態(tài)，使整個生產中斷。
    刮板輸送機可用于水平運輸，亦可用于傾斜運輸。沿傾斜向上運輸時，煤層傾角不得超過25°，向下運輸時，傾角不得超過20°，當煤層傾角較大時，應安裝防滑裝置。

Product overview
   Scraper conveyor adopts scraper chain drawing, transport bulk in the groove.Within the current mining face, the role of scraper conveyor not only is transporting coal and material, and is the coal winning machine's orbit, so it become the indispensable main equipment in modern coal mining technology.Scraper conveying function to maintain continuous operation, can be carried out in normal production.Otherwise, the whole coal mining working face will present production condition, make whole production disruptions.
Scraper conveyor can be used to transport, can also be used to tilt.When transported along the inclined upward, dip Angle of coal seam must not exceed 25 °, downward transport, Angle should not exceed 20 °, when the coal seam dip Angle is bigger, should install anti-skid device.

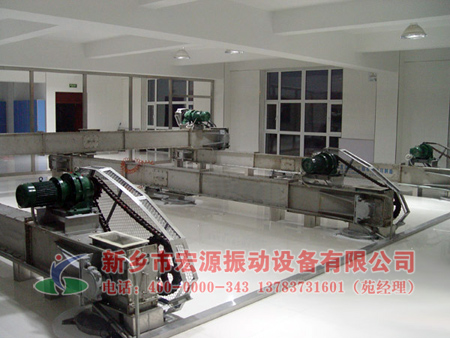

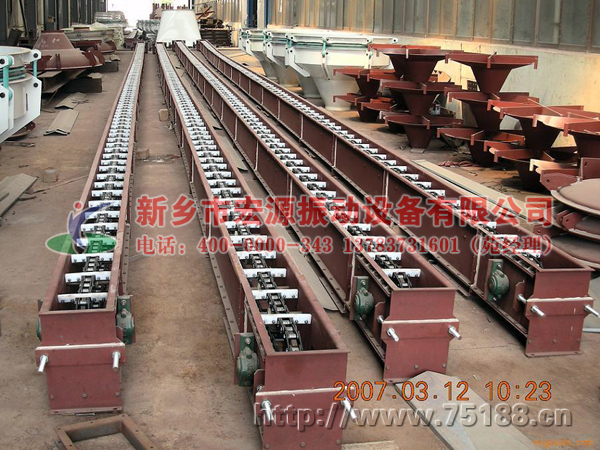

刮板輸送機現場圖片

Working site



刮板輸送機工作原理

    刮板輸送機的工作原理是，將敞開的溜槽，作為煤炭、矸石或物料等的承受件，將刮板固定在鏈條上（組成刮板鏈），作為牽引構件。當機頭傳動部啟動后，帶動機頭軸上的鏈輪旋轉，使刮板鏈循環(huán)運行帶動物料沿著溜槽移動，直至到機頭部卸載。刮板鏈繞過鏈輪作無級閉合循環(huán)運行，完成物料的輸送。

Working principles
   Working principle of scraper conveyor is that will open the chute, as coal, coal gangue or material such as bear, fix the scraper chain scraper chain composition, as traction artifacts.When the nose drive after start-up, drive sprocket on the shaft head rotation, make the scraper chain cycle running drive the material move along the chute, until to the nose of unloading.Bypass the scraper chain sprocket stepless closed cycle operation, complete material conveying.
