ZPS系列直排篩
ZPS系列直排篩產品概述
ZPS直排篩是我公司工程師為部分行業特殊設計的一種多用途新型篩分機，改變了原由的雙電機結構形式，采用單一臥式振動電機，物料的運行軌跡有多種調節形式，設備適應性顯著增加；物料直接排放，有大的處理量。
1000型篩機，網目24目，在線篩分制造方便面用小麥粉，用于除雜、增加小麥粉比表面積，可達到350kg/150秒。 公司可根據用戶要求設計制造，如將進料口加高、出料口加裝蝶閥等。
Product overview
ZPS straight vibrating screen is my company engineer for part of the industry design a new specially type multi-purpose screening machine, changing the reason of double motor structure, using a single horizontal vibration motor.The trajectory movement of the material has kinds of adjustment forms, equipment adaptability significantly increased;Material direct emissions, has a large capacity.SYM - 1000 type screening machine,mesh 24 ,online screening made with wheat flour, is used for removing impurity, increasing the specific surface area, can be up to 350 kg / 150 seconds.Our company can design and manufacture according to user requirements, such as heighten the feeding port, discharging mouth with butterfly valve, etc.
ZPS系列直排篩主要用途
ZPS直排式振動篩多用于面粉、淀粉、洗衣粉、金屬粉、添加劑、化工、非礦等行業的顆粒、粉末的粗略篩分、精度篩分，處理量大、易與生產線結合。你可600mm至1800mm之間有更多的選擇。
Applications
ZPS straight vibrating screen is used to flour, starch, washing powder, metal powder, additives, chemical industry, the mining industry ,the rough screening of granular, powder, sieving precision, large capacity, easy to combine with production line.You can have more choice between 600 mm to 600 mm.
ZPS系列直排篩主要特點
1.結構簡單、緊湊，維護方便，故障小。
2.全封閉結構，杜絕粉塵飛揚，噪音小，安靜環保。
3.大流量的出料口在底部，便于流水線作業的設備安裝。
4.上層出料口可以在360°內任意調整，方便安裝、使用。
5.處理量大，篩分精度高，可以有效的節約能源，起到事半功倍的效果。
6.新型網架結構，網的漲緊度高，使用壽命長，并且客戶自己可以快捷更換篩網。
Features
1. Simple and compact structure, convenient maintenance, less faults.
2. The product is fully closed structure, prevent dust scatter, the noise is small, quiet and environmentd protection.
3. The discharge port of Large flow at the bottom, easy to assembly line equipment installation.
4. The upper discharging mouth can within 360 ° in any adjustment, convenient installation and use.
5. Large quantity, high accuracy, can effectively save energy, have twice the result with half the effort.
6. New type of space truss structure, the net up tight degree is high, service life is long, and customers can quickly change the screen.

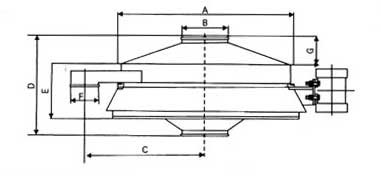

ZPS系列直排篩外形尺寸圖
Parameters
| 型號 | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| ZPS-600 | 600 | 150 | 380 | 560 | 325 | 120 | 80 |
| ZPS-800 | 800 | 200 | 540 | 600 | 350 | 125 | 90 |
| ZPS-1000 | 970 | 250 | 640 | 640 | 350 | 150 | 100 |
| ZPS-1200 | 1170 | 250 | 700 | 700 | 400 | 180 | 120 |
| ZPS-1500 | 1470 | 250 | 760 | 760 | 440 | 200 | 120 |
