脫水振動篩

脫水振動篩主要特點

     脫水直線振動篩具有體積小、結構簡單合理、篩分精度高、全封閉無污染、低噪音、低能耗、維修方便、保養簡單、篩網壽命長等優點。可單層或多層使用，最多可達到五層，篩框一般為木制結構，若篩孔較大，產量較高時篩框可制成鋼質結構，若篩分腐蝕性物料，與物料接觸部分采用不銹鋼制作。電機安裝方式可分為下振式和側振式，減振器安裝方式可分為座式和吊掛式。另我公司還可以根據用戶需要進行特殊設計制造。脫水振動篩是一種運動軌跡為直線的直線振動篩，具有結構先進，堅固耐用，噪音低，維修方便等優點。適用于選煤、選礦、電力、化工、輕工等部門，對中、細粒度物料進行干、濕式篩分或脫水、脫介、脫泥。

Features
Dehydration linear vibrating screen has the advantage of the  small volume, simple structure, reasonable, screening of high precision, fully enclosed no pollution, low noise, low energy consumption, convenient maintenance screen mesh, simple maintenance and long service life, etc.It can be used single or multi-layer, up to five layers. The screen flame is commonly wooden structure.If the mesh hole is bigger and yield is higher, screen flame can be made into steel structure.When screening corrosive materials,the part of contacting materials adopts stainless steel.Electrical installation can be divided into the under vibration and lateral vibration. Shock absorber installation can be divided into base type and hanging type.My company can also design and manufacture according to user needs special.Dehydration linear vibrating screen is a kind of linear vibrating screen, has the advanced structure, strong and durable, low noise, easy maintenance, etc.Applicable to the coal preparation, ore dressing, power, chemical industry, light industry and other departments, for medium and fine grained materials to dry and wet screening or dewatering, medium, and desliming.

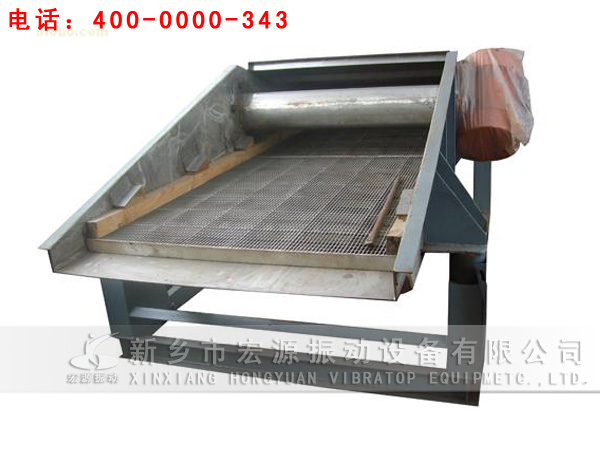

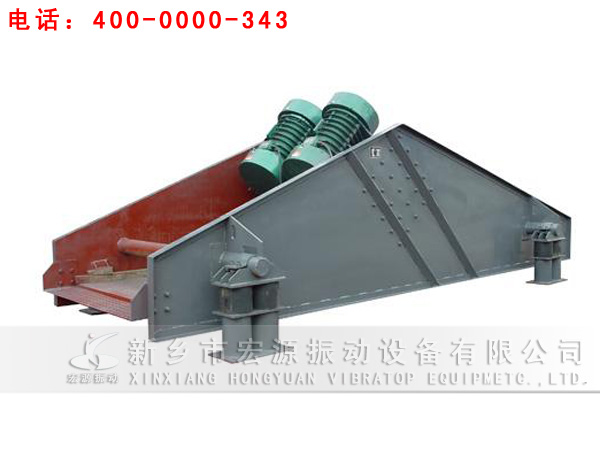

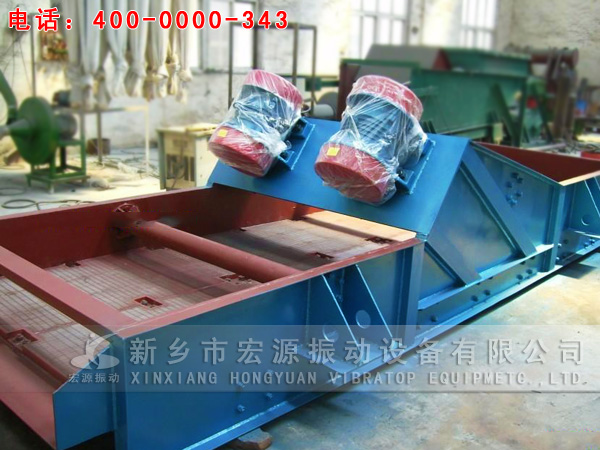

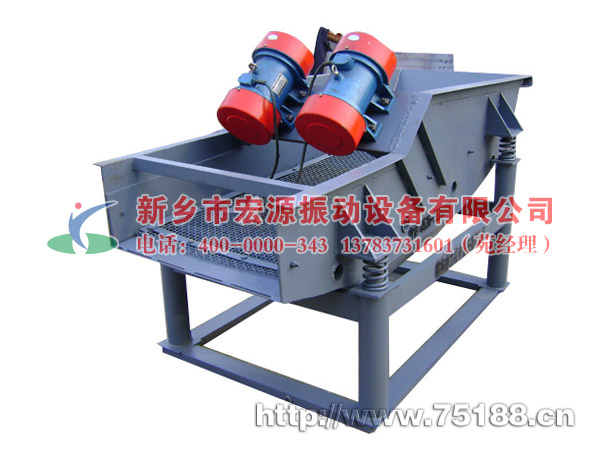

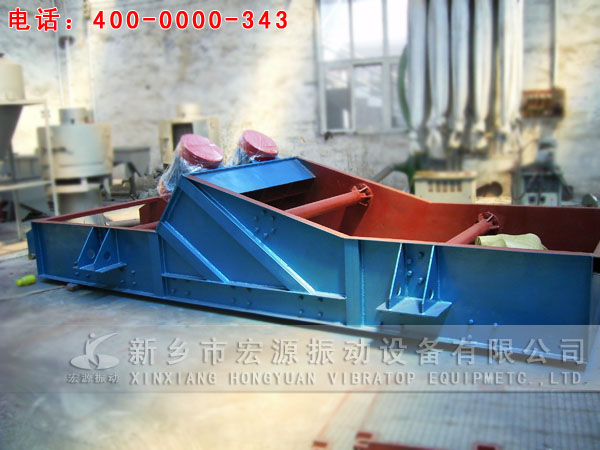

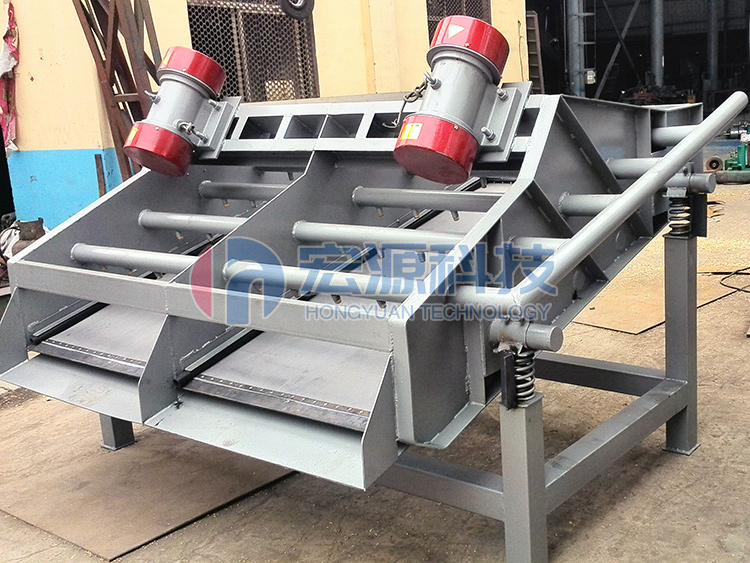

脫水振動篩圖片

Photos

脫水振動篩適用行業

    直線振動篩適用于0.74-10mm，含水小于7％，無粘性物料的任何干式物料的篩分。主要用于磨料磨具原料、化工、塑料、醫藥、樹脂粉、陶瓷原料、冶金、建材、糧食、化肥等行業中的干式粉狀、細顆粒狀或細微粉物料的篩分。
  Dehydration linear vibrating screen applications
     Linear vibrating screen is suitable for 0.74 to 10 mm, water content is less than 7%, and no viscous material any dry material screening.Mainly used in abrasives raw materials, chemical industry, plastic, medicine, powder, ceramic materials, metallurgy, building materials, food, chemical fertilizer and other industries which screens in the dry powder, subtle fine granular or powder material .

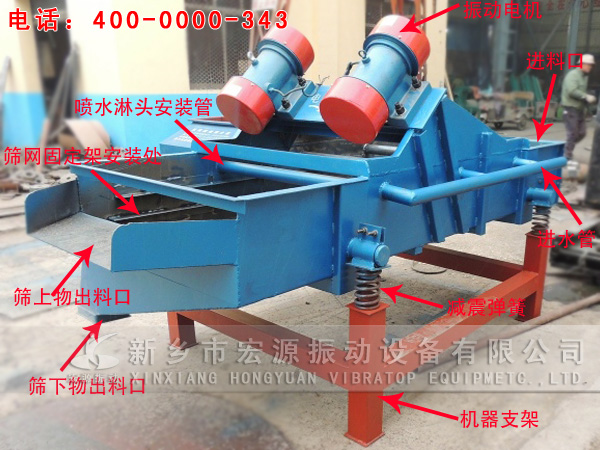

脫水振動篩產品結構以及各部分功能說明

   本篩機主要由篩箱、篩框、篩網、振動電機、電機臺座、減振彈簧、支架等組成。




　　 1、篩箱：由數種厚度不同的鋼板焊制而成，具有一定的強度和剛度，是篩機的主要組成部分。
　　 2、篩框：由松木或變形量較小的木材制成，主要用來保持篩網平整，達到正常篩分。
　　 3、篩網：有低碳鋼、黃銅、青銅、不銹鋼絲等數種篩網。
　　 4、振動電機(使用與維修方法詳見振動電機使用說明書)。
　　 5、電機臺座：安裝振動電機，使用前連接螺釘必須擰緊，特別是新篩機試用前三天、必須反復緊固，以免松動造成事故。
　　 6、減振彈簧：阻止振動傳給地面，同時支持篩箱的全部重量，安裝時，彈簧必須垂直與地面。
　　 7、支架：由四個支柱和兩個槽鋼組成，支持著篩箱，安裝時支柱必須垂直與地面，兩支柱下面的槽鋼應相互平行。
Stucture and specification of the part function
The machine is mainly consist of screen box, screen, screen, vibration motor, motor pedestal, damping spring, stents and so on this machine is mainly composed of screen box, screen, screen, vibration motor, motor pedestal, damping spring, support, etc.
        1.screen box: By a number of different thickness plates welded together, have a certain strength and stiffness, is the main part of the screen machine.
       2.flame: made of a small wood of less deformation or pine,mainly use for keeping screen smooth, achieve normal screening.
       3.Screen net: With low carbon steel, brass, bronze, stainless steel wire and other several kinds of screen mesh.
       4.Vibrating motor: use and maintenance method as shown in the vibration motor operating instructions
       5.Motor pedestal: Before installing vibration motor, connection screws must be tightened, especially before the 3 days the new machine use, must tighten repeatedly,in case loosing to cause an accident.
       6.damper spring: To prevent vibration to the ground, at the same time support the full weight of screen box, when installation, the spring must be vertical with the ground.

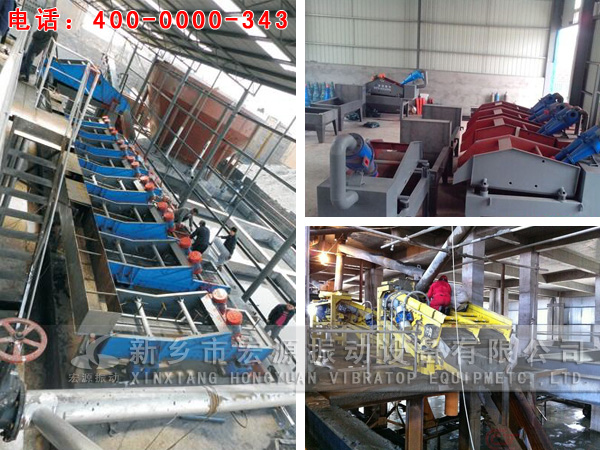

脫水振動篩使用現場
Woriking site

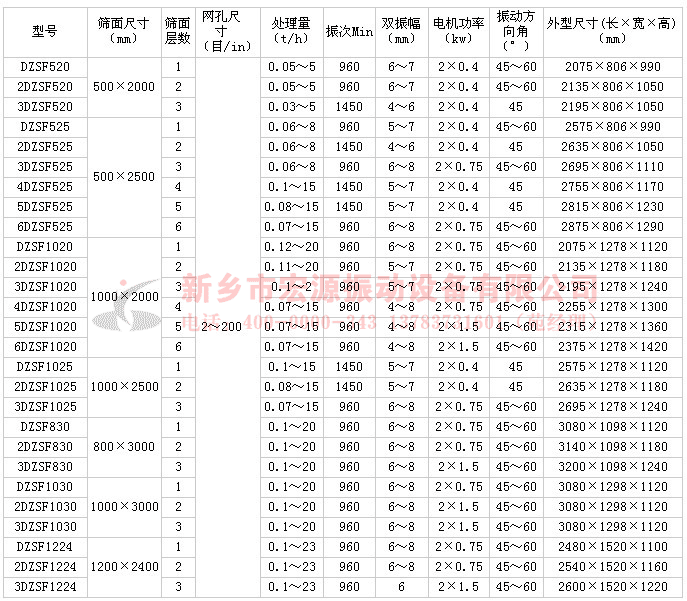

脫水振動篩主要技術參數

Parameters

脫水振動篩產品使用與維修指導

　　 1、本機應裝設電氣保護裝置。
　　 2、本機運行初期，每天至少檢查地腳螺栓一次，防止松動。
　　 3、當電機旋轉方向不符合要求時，調整電源相序即可。
　　 4、電機應保證潤滑良好，每運行二周左右補充鋰基潤滑脂（ZL-3）一次，加油時，通過油杯加入適量鋰基潤滑脂。當采用密封軸承時，電機沒有安裝油杯。
　　 5、本機累計運行1500小時后，應檢查軸承，若有嚴重損傷時應立即更換。
　　 6、本機停置較長時間后再次使用時，應測量絕緣電阻，用于500伏兆歐表測量，應大于0.5兆歐。

The instructions of using and maintaining.
     1. The machine should be installed wih electric protection device.
      2. The machine run early, check the foundation bolt at least once a day, to prevent loosening.
      3. When the motor rotation direction is not in conformity with the requirements, adjust the power phase sequence.
      4. Motor should guarantee good lubrication, run every two weeks or so and added lithium grease (ZL - 3) once, come on, by adding suitable amount of lithium grease oil cup.When using sealed bearing,motor is not installed oil cup.
       5.After the machine running 1500 hours, should check bearing,it should be replaced immediately if has sever damage.
       6.The machine is stopped again after a long time when using, should be measuring insulation resistance, is used for 500 v megohmmeter,  it should be greater than 0.5 ohms.


脫水振動篩產品日常保養

1、啟動前：
　　 （1）檢查粗網及細網有無破損;
　　 （2）檢查運輸支撐是否拆除。
  2、啟動時：
　　 （1）注意有無異常雜音;
　　 （2）電流是否穩定;
　　 （3）振動有無異狀;
3、使用后：每次使用完畢即清理干凈。

Current  maintenance.
1.Befor use:
    （1）Check whether there is any damage on the coarse mesh and fine mesh.
    （2）Check whether the transport support is removed.
 2.In use
    （1）Note any abnormal noise.
    （2）electric current is stable;
    （3）Vibration has the same shape;
3.After use:clean after use

脫水振動篩產品定期保養

　　定期的檢查粗網，細網和彈簧有無疲勞及破損，機身各部位是否因振動而產生損壞，需添加潤滑油的部位必須加油潤滑。

       備注：DZSF系列直線振動篩（直線篩）產品制作材質分別為：普鋼、碳鋼、不銹鋼三種材質，具體型號及參數請參照直線篩技術參數表中的數據，選型及報價請聯系我們的工作人員，另外，我公司還可以根據客戶要求制作各種型號規格的直線振動篩，比如：糧食直線篩，葵花籽直線篩，輕型直線篩等特殊行業專用直線篩。

    注：可根據客戶需要重新設計產品。宏源科技咨詢熱線：0373-2678028.

Periodic maintenance
      Regularly check the coarse mesh, mesh and spring without fatigue and damage, the fuselage parts damaged due to vibration, the part of the need to add the lubricating oil must be lubrication.
     Ps:The material of type DZSF linear vibrating screen divided into normal steel,cabon steel and stainless steel,concrete types and parameter please refer to linear vibrating screen technology paremeters.Please contact with our company if choose types and quoted price.Besides,Our company can also be produced according to customer requirements of various specifications of linear vibrating screen, such as: food linear sieve, sunflower seeds linear sieve, light line screen special industries such as special linear sieve.
        Note:According to the customer need to design the product.Hongyuan viration Phone:0373-2678028
