FU型鏈?zhǔn)捷斔蜋C(jī)

FU型鏈?zhǔn)捷斔蜋C(jī)產品概述

    FU型鏈?zhǔn)捷斔蜋C(jī)，是引進國外先進技術，并進行了獨創性的改進設計后制造出來的一種用于水平(或傾斜≤15°)輸送粉狀、粒狀物料的機械新產品，其使用性能優于螺旋輸送機，埋刮板輸送機和其它輸送設備，廣泛用于建材、建筑、化工、礦山、機械、冶煉、糧飼加工等行業，是一種理想的新型輸送設備。

Product overview
   FU chain conveyor, is the introduction of advanced foreign technology, and carry on the improvement of the original design made one for level (or tilt 15 ° or less) of powdery and granular materials mechanical transmission of new products, its performance is better than the screw conveyor, buried scraper conveyor, and other transportation equipment, widely used in building materials, construction, chemical, mining, feeding machinery, metallurgy, food processing and other industries, is an ideal new type of conveying equipment.

FU型鏈?zhǔn)捷斔蜋C(jī)工作原理

    FU型鏈?zhǔn)捷斔蜋C(jī)優越性源于它的工作原理，由于物料具有內摩擦力和側壓力等特性，輸送鏈的運動使機槽內的物料之內部壓力和顆粒間的內摩擦力增加，當料層之間的內摩擦力大于物料與槽壁間的外摩擦力時，物料就隨著輸送鏈一起象水一樣地向前流動，料層高度與機槽寬度的比值滿足一定條件時，可形成穩定的物料流。先進的輸送原理，精良的設計和制造工藝為本系列產品的優良性能提供了可靠保證。

Working principles
   FU chain conveyor type superiority stems from its work principle, because the material has the character of friction and lateral pressure, the movement of the conveyor chain making machine groove material internal pressure and the interparticle friction force to increase, when the layer between the internal friction is greater than the material between the tank wall and external friction, material together with the conveying chain forward flow like water, layer height and machine the ratio of groove width, while a certain condition can form stable material flow.Advanced transmission principle, sophisticated design and manufacturing technology for the series of products provides a reliable guarantee for the good performance.

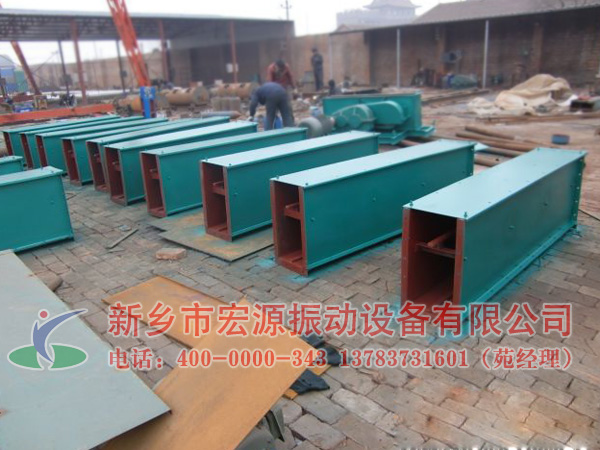

FU鏈?zhǔn)捷斔蜋C(jī)生產現場
production site

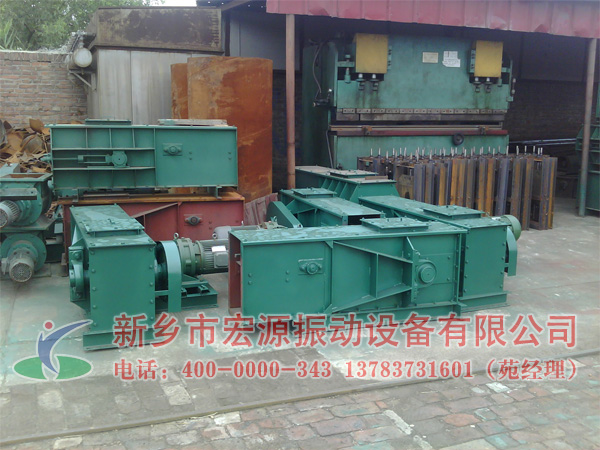

FU鏈?zhǔn)捷斔蜋C(jī)生產現場
production site

FU型鏈?zhǔn)捷斔蜋C(jī)主要特點

1.結構合理、設計新穎、技術先進、系列齊全。
2.全封閉機殼，密封性能好，操作安全，運行可靠。
3.節省費用,節電且耐用，維修少，降低消耗，提高效益。
4.輸送能力大，允許在較小空間內輸送大量物料，輸送量達6～600m3/h。
5.進出口靈活，高架、地面、地坑、水平、爬坡（≤15°）均可安裝，輸送長度可根據用戶設計。
6.使用壽命長，輸送鏈用合金鋼材經先進熱處理手段加工而成，正常壽命＞5年，鏈上的滾子壽命≥2～3年。

Features
1. Reasonable structure, novel design, advanced technology and complete series.
2. Totally enclosed chassis, sealed performance is good, safe in operation and reliable running.
3. Cost saving, power saving and durable, less maintenance, lower consumption, improve business efficiency.
4. Large conveying capacity, allowing for transporting a large number of materials within a small space throughput up to 6 ~ 600 m3 / h.
5. Flexible import and export , elevated, ground, pit, level, climbing (15 ° or less) can be installed, length can be designed according to the user.
6. The service life is long, conveyor chain alloy steel by means of advanced heat treatment and normal life > 5 years, chain roller life of 2 ~ 3 years or more

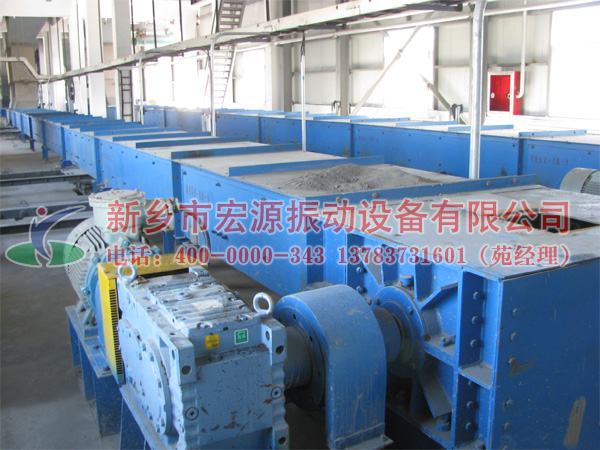

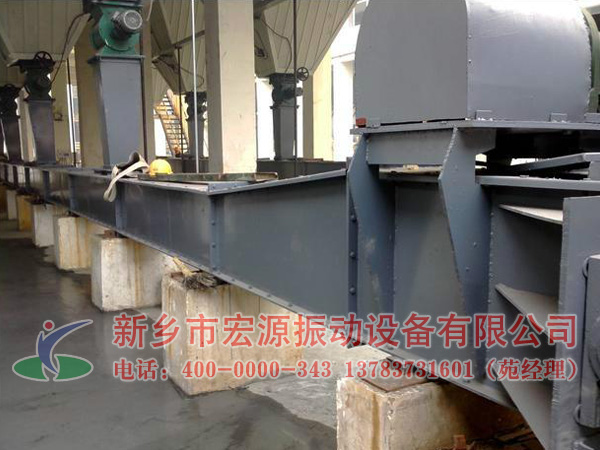

FU鏈?zhǔn)捷斔蜋C(jī)使用現場
working site

FU型鏈?zhǔn)捷斔蜋C(jī)

1.設備選用：
(1)鏈速 根據物料的狀態選擇鏈速，對磨琢性強、溫度高、粗大顆粒比例多及料粒大的物料選用慢速對水泥和生料的最適鏈速可參照表2-2選擇，其它與水泥性能及狀態相近的物料可以參照選擇。
(2)機型 根據輸送量選定機型。在同樣輸送量下，選擇較大機型可使鏈速降低，延長使用壽命，但輸送量低于應輸送量30%以上時，會發生料層過薄，形成空轉，增加磨損。
(3)動力 根據輸送量，輸送長度和工藝狀況參照表3-7選擇動力。驅動裝置的裝配形式分為X1、X2及左右裝等，X2為背裝式。
(4)進出料口 各進出料口，用戶根據需要進行選擇。
a.以免進料暢，對流動性差，濕度大的物料不宜采用上進料口。
b.第一只進料口離尾軸較近時，不宜采用上進料口。
c.根據用戶需要，本機可設多只進、出料口，還可提供帶閘出料口。

Equipment selection
(1) the chain speed according to material status to choose chain speed, the grinding cut resistant, high temperature, thick particle proportion and material size bigger choose slow of cement and raw material of the chain of optimum speed can reference table 2-2 choice, and the cement performance and other similar material can refer to choose.
(2) models according to the throughput selected models.Under the same throughput, choose bigger models can make chain speed reduce, prolong service life, and throughput is lower than the throughput should be more than 30%, material layer will happen too thin, idling, increase the wear and tear.
(3) the power According to the throughput, conveying the length and the process conditions reference table 3-7 choice.Drive assembly form around the X1, X2, and etc, X2 for back pack type.
(4) in and out of the mouth All the in and out of the mouth, the user to choose according to need.
A. in order to avoid feeding chang, the liquidity is poor, high humidity of material feeding port on the unfavorable use.
B. the first inlet close, from the shaft inlet on the unfavorable use.
C. according to user needs, the machine can set more than into and out of the material, also can provide with brake discharging port.

FU型鏈?zhǔn)捷斔蜋C(jī)技術參數表

Parameters

型號	槽寬 mm	理想粒度 mm	最大粒度 mm	輸送量m3/h
				鏈速m/min
				11	13.5	17	21	22.7	28
FU150	150	<4	<8	10		16		20
FU200	200	<5	<10	20		30		40
FU270	270	<7	<15	35	45	55		70	80
FU350	350	<9	<18		70	85			130
FU410	410	<11	<21		90	110			175
FU500	500	<13	<25			170		210	270
FU600	600	<15	<30		184	224		276	340
FU700	700	<17	<35		250	305		376	460
