GT系列滾筒篩
GT系列滾筒篩產品概述
GT-系列滾筒篩是我公司為電廠、焦化廠、建材、冶金、化工、礦山等行業而研制的專用篩分設備，它克服了圓振動篩和直線篩在篩分較濕物料時出現的篩網堵塞問題，提高了篩分系統的產量和可靠性，受到廣大用戶的一致好評。
Product overview
GT series drum screen is my company for the power plant, coking plant, building materials, metallurgy, chemical, mining and other industries and the development of special screening equipment, it overcomes the circular vibrating screen and linear screen in screening is wet material congestion, improve the yield and reliability of the screening system, by the broad masses of the user's consistent high praise.

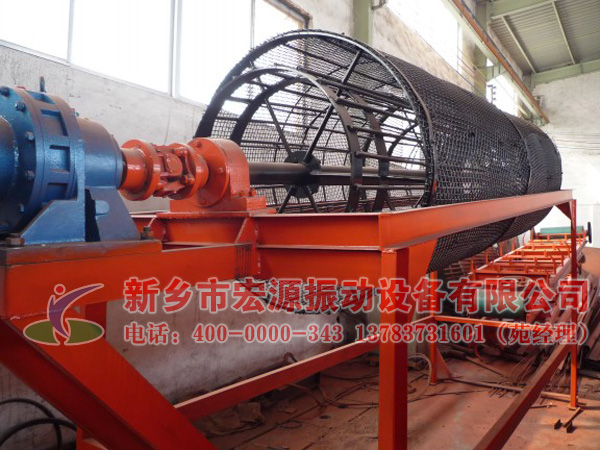

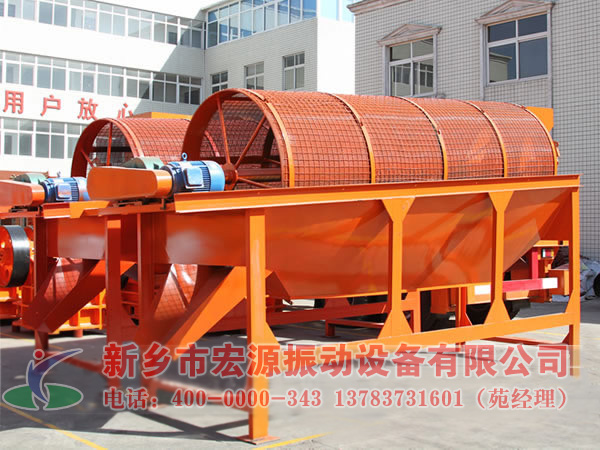

滾筒篩是由六角形滾筒、機架、漏斗、減速器、電動機五個部分成。破碎的石料進入滾筒后， 靠滾筒旋轉的離心力及跳汰作用來篩分物料。通過不同網目的篩網逐一篩出。不同規格的石料篩出后經漏斗落入皮帶機送至成品料場。一方面隨著滾筒轉動而被篩選，靠滾筒旋轉的離心力及跳汰作用來篩分物料。一方面粒度大的石料沿著滾筒的斜度向前流動，通過不同網目的的篩網逐漸被篩出。不大的石料篩出后落入各自的漏斗，然后由人工運出或自流送往成品堆。
Drum screen is made up of hexagonal roller, frame, funnel, reducer, motor into five parts.After entering the drum of broken stone, by roller rotation of the centrifugal force and jigging sieve materials.Through different mesh screen out one by one.Different specifications of stone material screen out after the funnel into the belt conveyor to the finished goods yard.By screening, on the one hand, as the drums rotate by roller rotation of the centrifugal force and jigging sieve materials.On the one hand, particle size of stone along the slope forward flow of roller, through different mesh screen out gradually.Small stone screen out into their respective funnel, and then by artificial or gravity to finished pile is carried out.
GT系列滾筒篩工作原理
T-系列滾筒篩它利用機械方法，通過數片并列的篩條構成篩孔并形成篩面。篩筒旋轉利用物料的自重進行篩分，篩筒內的3根聯接軸高于篩面，它能將大塊物料撥騰起來，從而加大了篩分效率，并借助篩面斜度使物料向前運動，最終落入破碎機中。小于篩孔尺寸的物料從篩孔落下，即獲得了篩分目的。
Working principles
T - series drum screen itself using the mechanical method, through counting of bar constitute mesh and screen surface is formed.Cylindrical screen rotation using the material of self-respect to sieve, sieve tube within the three connection shaft above the surface, it can soar up large materials, thereby increasing the screening efficiency, and with the aid of sieve surface slope makes the material move forward, eventually fell into the crusher.Less than screen hole size of the material from mesh, which won the screening purpose.

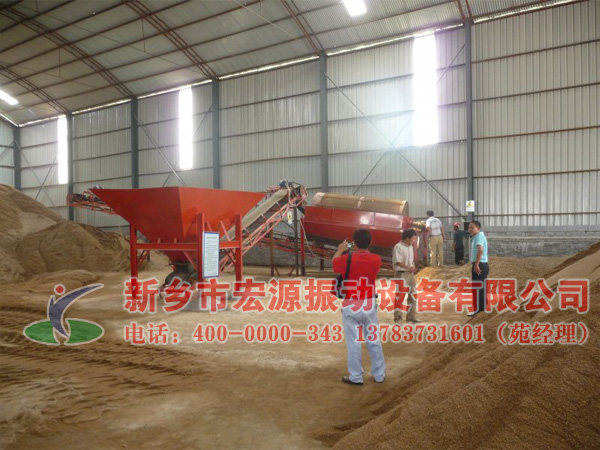

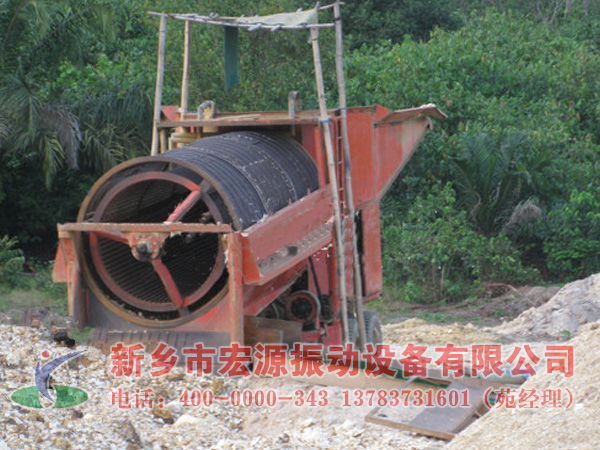

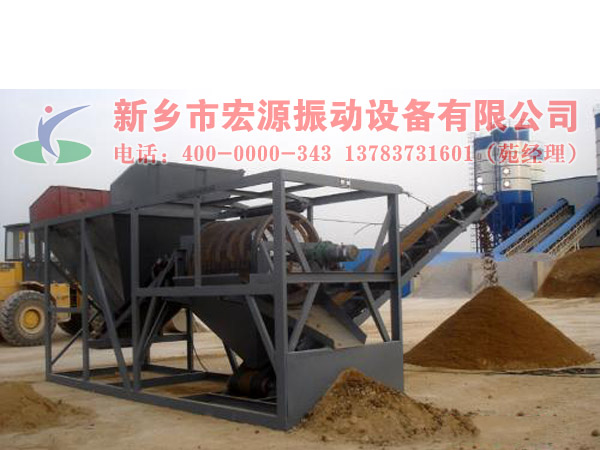

滾筒篩使用現場
Working site

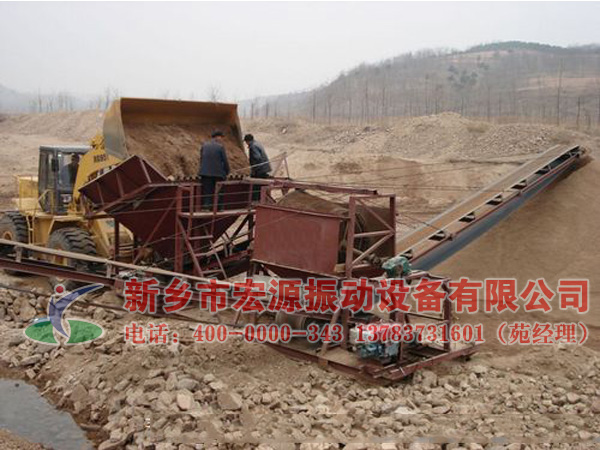

滾筒篩篩沙現場
Sand screening site
GT系列滾筒篩主要特點
1.篩孔不易堵塞。
2.運行平穩，噪聲較低。
3.結構簡單，維修方便。
4.整機可靠性高，一次性投資較少。
5.采用特制篩網，篩分效率高，使用壽命長 。
Features
1. The mesh is not easy to jam.
2. Smooth operation, low noise.
3. Simple structure, convenient maintenance.
4. The whole machine has high reliability, one-time investment is less.
5. Use special mesh, high screening efficiency, long service life.
GT系列滾筒篩技術參數表
Parameters| 型號 | 篩面面積(m2) | 處理量(t/h) | 外篩直徑 | 長度 | 功率（KW） |
|---|---|---|---|---|---|
| GTS-3 | 3 | 10.4 | Φ1200 | 3.5 | 4 |
| GTS-5 | 5 | 13.8 | Φ1200 | 4 | 5.5 |
| GTS-10 | 10 | 27.8 | Φ1400 | 5 | 7.5 |
| GTS-15 | 15 | 47.7 | Φ1500 | 6 | 11 |
