DD/ZD礦用/煤用單軸振動篩

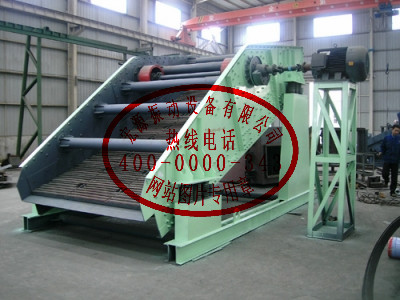

DD、ZD系列礦用單軸振動篩產品概述
DD、ZD型礦用單軸振動篩運動軌跡為圓，全系列共有十七種規格，可供礦山、煤炭、電力、建筑、化工等部門對中等粒度物料進行干式分級,對于有橡膠篩板的篩分機對焦碳物料進行分級效果尤佳,結構簡單 、維修方便、作業可靠，篩分效率高，透篩，性能好。
Product overview
DD, lh-zd mine vibrating screen trajectory is round, a total of 17 full range specifications, available for mining, coal, power, building, chemical and other departments to dry medium granularity material classification, screening machine with rubber screen plate focus sorted carbon effect is a plus, simple structure, convenient maintenance, reliable operation, high screening efficiency, through screening,good performance .
DD/ZD系列單軸振動篩產品型號說明
Types explanation
DD/ZD系列單軸振動篩產品選型指導
單軸篩有吊式和座式，層數有單層和雙層，傳動形式分左右，篩板有沖孔、編織（其中還有橡膠篩網）。
Uniaxial screen has hanging type and block type, is single and double layer about transmission form, screen plate has punching and weaving (including rubber sieve).
DD、ZD系列礦用單軸振動篩工作原理
Working principles

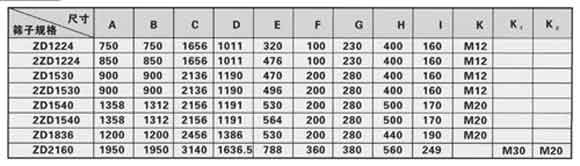

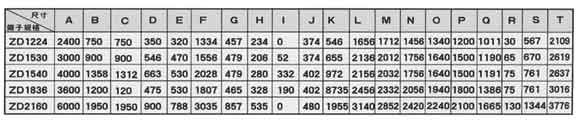

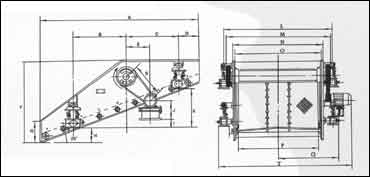

單軸振動篩安裝示意圖表:
The installation diagram
DD、ZD系列礦用單軸振動篩技術參數表
Parameters| 型號 | 篩網 |
給料粒度 （mm) |
生產能力 （t/h) |
振動 頻率 （l/min) |
雙振幅 （mm) |
電動機 |
外型尺寸 長x寬x高 |
安裝 形式 |
總重 （kg) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 層數 | 面積（m2) | 篩孔尺寸 | 篩網結構 | 型號 | 功率 | ||||||||
| DD918 | 1 | 1.6 | 1-25 | 鋼絲編織 | ≤60 | 10-30 | 1000 | 5-6 | Y100L-4 | 2.2 | 2152X1418X575 | 吊式 | 440 |
| 2DD918 | 2 | 1.6 | 1-25 | 鋼絲編織 | ≤60 | 10-30 | 1000 | 5-6 | Y100L-4 | 2.2 | 2200X1418X630 | 吊式 | 600 |
| DDM1235 | 1 | 4 | 500-100 | 鋼絲編織 | ≤400 | 150-210 | 920 | 6 | Y132S-4B3 | 5.5 | 3500X2166X2034 | 吊式 | 2112 |
| DDM1556 | 1 | 8 | 25-50 | 沖孔 | ≤400 | 400 | 920 | 6-8 | Y160M-4B3 | 11 | 5400X2460X2105 | 吊式 | 3376 |
| 2DDM1556 | 2 | 8 |
上25-100 下6-25 |
上沖下編 | ≤400 |
上90-450 下30-90 |
1000 | 6 | Y180M-4 | 18.5 | 5500X2100X2505 | 吊式 | 5096 |
| DDM1740 | 1 | 7 | 50-100 | 沖孔 | ≤400 | 240-360 | 920 | 5-7 | Y132M-4B3 | 7.5 | 3815X2646X2505 | 吊式 | 3092 |
| DDM1756 | 1 | 9.5 | 25-50 | 沖孔 | ≤400 | 270-540 | 920 | 5-7 | Y160T-4B3 | 15 | 5600X2783X2176 | 吊式 | 3995 |
| DDM2056 | 1 | 11 | 25-125 | 沖孔 | ≤400 | 300-1100 | 920 | 6-8 | 180M-4B3 | 18.5 | 5662X3123X4469 | 吊式 | 4599 |
| 2DDM2056 | 2 | 11 |
上25-100 下6-25 |
沖孔 | ≤400 |
120-600 40-120 |
1000 | 6-8 | Y180M-4 | 18.5 | 5500X3148X2350 | 吊式 | 5650 |
| ZD918 | 1 | 1.6 | 1-25 | 編織 | ≤60 | 10-30 | 1000 | 6 | Y100L-4 | 2.2 | 2150X1418X575 | 吊式 | 553 |
| 2ZD918 | 2 | 1.6 | 1-25 | 編織 | ≤50 | 10-30 | 1000 | 6 | Y100L-4 | 2.2 | 2200X1418X565 | 座式 | 702 |
| ZD1224 | 1 | 2.9 | 6-40 | 編織 | ≤100 | 70-210 | 1000 | 0-7 | Y112M-4 | 4 | 2500X2150X1340 | 座式 | 1130 |
| 2ZD1224 | 2 | 2.9 | 6-40 | 編織 | ≤100 | 70-210 | 850 | 0-7 | Y112M-4 | 4 | 2600X2200X1780 | 座式 | 1545 |
| ZD1224J | 1 | 2.9 | 11x42 13x42 26x35 | 橡膠 | ≤100 | 850 | 3.5 | Y112M-4 | 4 | 2500X2150X1340 | 座式 | 1086 | |
| 2ZD1224J | 2 | 2.9 | 13x42 29x35 48x58 | 橡膠 | ≤100 | 800 | 3.5 | Y112M-4 | 4 | 2600X2200X1780 | 座式 | 1637 | |
| ZDM1235 | 1 | 4 | 50-100 | 沖孔 | ≤400 | 150-210 | 920 | 7 | Y132-4B3 | 5.5 | 3338X2210X1853 | 座式 | 2235 |
| ZD1530 | 1 | 4.5 | 6-50 | 鋼絲編織 | ≤100 | 90-270 | 920 | 6-7 | Y132S-4 | 5.5 | 3100X2690X1570 | 座式 | 1650 |
| 2ZD1530 | 2 | 4.5 | 6-50 | 鋼絲編織 | ≤100 | 90-270 | 850 | 6-7 | Y132S-4 | 5.5 | 3100X2690X2250 | 座式 | 2260 |
| ZD1530J | 1 | 4.5 | 11x42 | 橡膠 | ≤150 | 90-270 | 850 | 7 | 132-4 | 5.5 | 3100X2690X1570 | 座式 | 2260 |
| 2ZD1530J | 2 | 4.5 |
13x42 26x35 48x58 |
橡膠 | ≤100 | 90-270 | 850 | 7 | Y132S-4 | 5.5 | 3200X2690X2250 | 座式 | 2653 |
| ZD1540 | 1 | 6 | 6-50 | 鋼絲編織 | ≤100 | 90-270 | 850 | 7 | Y132M-4 | 7.5 | 4000X2505X2028 | 座式 | 2070 |
| 2ZD1540 | 2 | 6 | 6-50 | 鋼絲編織 | ≤100 | 90-270 | 850 | 7 | Y132M-4 | 7.5 | 4200X2600X2660 | 座式 | 2850 |
| ZDM1556 | 1 | 8 | 25-50 | 沖孔 | ≤400 | 225-450 | 920 | 6-8 | Y160m-4 | 11 | 5410X2466X2256 | 座式 | 3611 |
| 2ZDM1556 | 2 | 8 |
上25-50 下6-25 |
≤400 | 30-300 | 1000 | 6-8 | Y180m-4B3 | 18.5 | 5500X2860X3049 | 座式 | 5347 | |
| ZDM1740 | 1 | 7 | 50-100 | 沖孔 | ≤400 | 270-400 | 920 | 5-7 | Y132M-4B3 | 7.5 | 3815X2694X2084 | 座式 | 3224 |
| ZDM1756 | 1 | 9.5 | 25-50 | 沖孔 | ≤400 | 270-540 | 920 | 5-7 | Y160L-4B3 | 15 | 5409X2858X2295 | 座式 | 4027 |
| ZD1836 | 1 | 9.5 | 6-50 | 編織 | ≤150 | 100-300 | 850 | 7 | Y160M-4 | 11 | 3670X2990X1807 | 座式 | 1960 |
| ZDM2056 | 1 | 11 | 13-125 | 編織 | ≤400 | 100-1000 | 920 | 6-8 | Y180M-4 | 18.5 | 5662X3096X2795 | 座式 | 5991 |
| 2ZDM2056 | 2 | 11 |
上25-100 下6-25 |
上沖下編 | ≤400 | 120-600 | 1000 | 6-8 | Y180M-4B3 | 18.5 | 5500X3360X2986 | 座式 | 5891 |
| 2ZDM2056G | 2 | 11 |
上25-100 下0.75 |
上編下條 | ≤400 | 200-400 | 800 | 6.7 | Y180M-4B3 | 18.5 | 5600X3516X2870 | 座式 | 9864 |
| ZD2160 | 1 | 12.5 | 10-50 | 橡膠 | ≤150 | 900 | 8 | Y180L-4 | 22 | 6676X2420X1600 | 座式 | 6529 | |
| ZD1836J | 1 | 6.5 |
43x58 87x104 |
橡膠 | ≤150 | 100-300 | 850 | 7 | Y160M-4 | 11 | 3600X2456X1480 | 座式 | 475 |
選型訂貨須知
單軸篩有吊式和座式，層數有單層和雙層，傳動形式分左右，篩板有沖孔、編織（其中還有橡膠篩網），訂貨須注明篩板結構篩孔尺寸。
Selection order instructions
Uniaxial screen hanging type and block type, is single and double layer about transmission form, screen plate has punching and weaving (including rubber sieve), the order must mention the screen plate structure mesh size.
