臥式氣流篩

臥式氣流篩產品概述

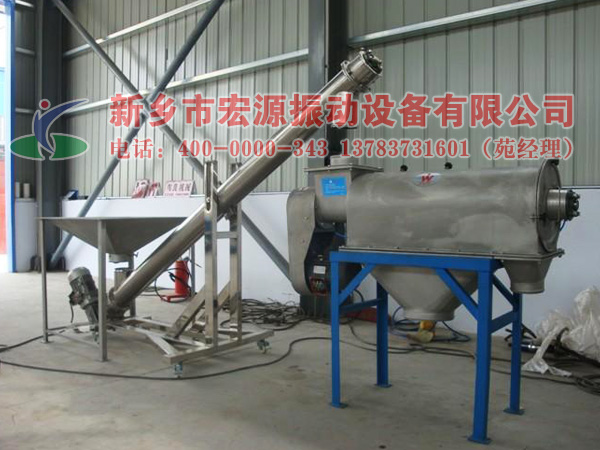

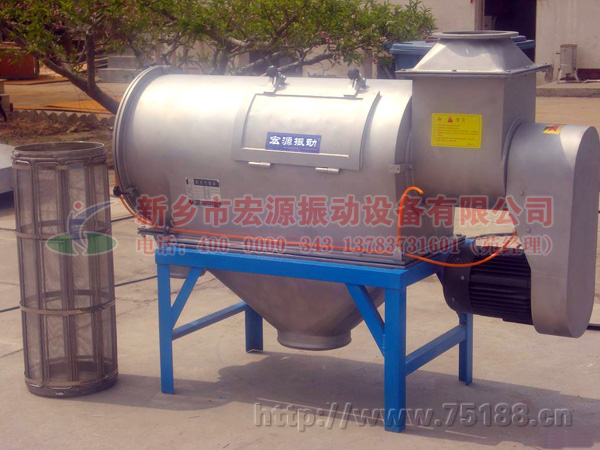

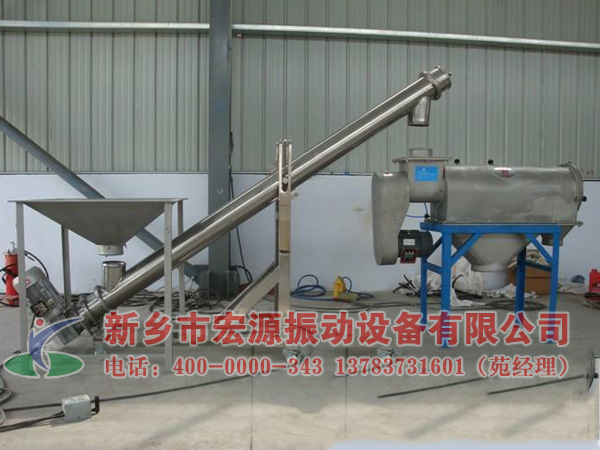

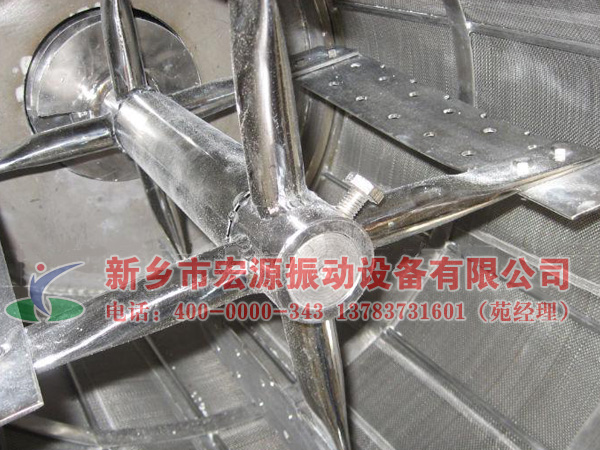

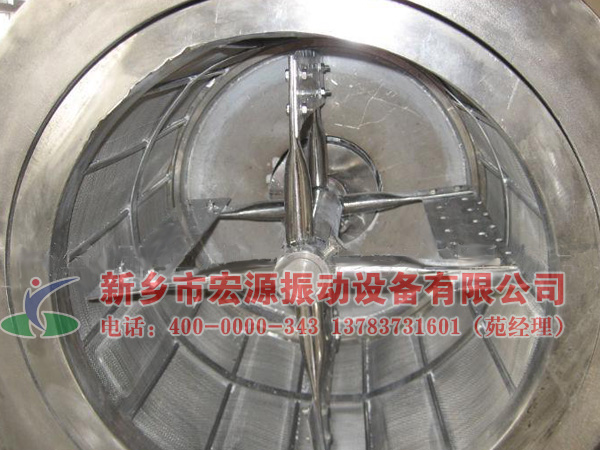

    WQS氣旋篩由于形狀為橫臥狀所以也叫臥式氣流篩或臥式氣流篩粉機,網為圓筒狀，置于機體內，物料通過螺旋輸送系統后，和氣流混合、霧化進入網筒內；通過網筒內風輪葉片使物料同時受離心力和旋風推進力，從而近使物料噴射過網，由細料排出口排出，不能過網的物料沿網筒壁從粗料排出口排出。

Product Overview
   WQS cyclone screen shape is lying so is also called horizontal airflow screen or horizontal airflow sieving machine, network cylinder, placed inside the body, after the material through the screw conveying system, and mixed with air, atomization cylinder is into the net;Through network within the cylinder rotor blade makes the material at the same time by the centrifugal force and whirlwind propulsion, which nearly made the sprayed material, make the fine material discharge from outlet, the material that can not pass the net are compared in from coarse material outlet.

臥式氣流篩性能特點

    1.任何粒、粉皆可適用。占地面積小，平穩無振動、運行無噪音、密閉性能好，不污染環境。
    2.可單機或多機配套、立體多層安裝使用，移動靈活方便，連續運行安全可靠。
    3.篩分精度高，適宜篩分超微細粉、密度小(比重輕)、輕微濕度、易附粘性粉或有靜電反應的物料。
    4.篩網使用壽命長久，內部結構新穎先進，網架設計獨特耐用。換網容易，操作簡單。纖維篩網管或不銹鋼篩網管使用環形卡箍、長條形卡箍固定。
    5.具有自由抖網，自動清潔，有破碎塊狀物料的功能，篩分效率高。

Features
 1.Can be used for any granule and powder.Cover an small area, stable and no vibration, running noise,good sealed , do not pollute the environment.
2. Can be single or multiple machine, three-dimensional multilayer installation, convenient movement and continuous operation safe and reliable.
3. The screening of high precision, suitable for screening superfine powder, small density (light weight), slight moisture, easy to viscous powder materials with electrostatic reaction or attached.
4. The long duration of advanced internal structure is novel, unique design inside,simple operation.Fibre sieve tube or stainless steel sieve tube using circular clamp and strip clamp fixed.
5. With free shaking network, automatic cleaning, have the function of the broken block material, high screening efficiency.

臥式氣流篩安裝操作調試

    1.設備長途運輸后要將所有緊固螺栓檢查一遍并緊固，當篩機吊裝搬移固定位置后，應注意篩機整體處于水平位置。否則，會影響篩機的正常運轉。
    2.對設備基礎無特殊要求，一般放置水泥地面直接使用即可。
    3.凈化壓縮空氣與空氣過濾器接頭聯接用耐壓(P=0.1MPa)膠管相連。
    4.與其它設備配套的聯接方式采用螺紋膠管、粗布、合成纖維管進行軟聯接，也可與管道直接相聯。
    5.開動篩機前應檢查端蓋、觀察孔、各聯接部位有無松動，各聯接口是否密封良好。
    6.注意觀察篩選機轉子(流化條)和帶動篩網架轉動(指FSQWZ型)的減速機是否按機身箭頭所標示的規定方向轉動，確保無誤才能運行。

Installtion and testing
 1. The equipment after long-distance transportation should be checked and tighten all the bolt, after the screening machine hoisting move a fixed position, screen machine as a whole should be paid attention  in a horizontal position.Otherwise, will affect on the normal operation.
2. No special requirements for equipment foundation, generally placed the cement floor is ok.
3. The purified compressed air and air filter joint connection with pressure hose connected (P = 0.1 MPa).
4. Using corrugated hose connection with other equipment, coarse linen, synthetic fiber, soft connection, also can be directly connected with pipes.
5. Start the screen before should check the end cover, observation hole, the connecting parts for loose, the connection is properly sealed.
Article
6. Observe the sieving machine rotor (fluidization) and drive the screen rotation (FSQWZ type) of reducer is stipulated in the fuselage marked by the arrow direction, be sure to run.

型號	材質	適用
QW18-85	Q235A	500 目以下篩分
	SUS304
QW30-85	Q235A	500目以下篩分
	SUS304
QW50-100	Q235A	500目以下篩分
	SUS304

臥式氣流篩的使用范圍

     化工行業一純堿、聚乙烯、樹脂粉(PVC、環氧)、洗衣粉、助劑、油漆、染料、顏料、橡膠、涂料等
     非金屬業一炭黑(白炭黑)、石英粉(沙)、云母、熒光粉、長石粉、高嶺土、粉煤灰、玻璃微珠等。
     冶金行業一合金粉、(金、銀、銅、鋁、鎳、鉻、鎂、鋅、鋇、釩、欽、鍶.鉛)粉、鑄造砂等。
     食品行業一調味品、(魚、米、面、豆、奶、蛋)粉、淀粉、砂糖、果汁等。
     醫藥行業一西藥粉、中藥粉、醫藥中間體、珍珠粉等。
     其他行業一環保、塑膠、磁材、礦山、窯業、飼料等。

Applications
Chemical industry:a soda ash, polyethylene, tree powder (PVC), epoxy, washing powder, additives, paints, dyes, paints, rubber, paint, etc
Nonmetallic industry:a carbon black (white carbon black) (sand), mica, quartz powder, fluorescent powder, feldspar powder, kaolin, fly ash, glass beads, etc.
The alloy powder metallurgy industry, (gold, silver, copper, aluminum, nickel, chromium, magnesium, zinc, barium, vanadium, chin, strontium. Lead) powder, sand casting, etc.
A condiment and food industry :(fish, rice, noodles, bean, milk, egg) powder, starch, sugar, fruit juice, etc.
The pharmaceutical industry:in the west powder, powder, pharmaceutical intermediates, pearl powder, etc.
Other industries: plastic, magnets, mining, environmental protection, ceramic industry, fodder, etc.
