GX管式螺旋輸送機
GX管式螺旋輸送機產品概述
Product overview
Screw conveyor is widely used in building material, metallurgy, chemical industry, electric power, coal, machinery, light industry, food and the food industry, is suitable for conveying powder, granulated and small lump materials, such as cement, coal, grain, chemical fertilizer, ash, sand, coke, etc.;Should not be transporting perishable materials, big viscosity, easy to agglomerate.Screw conveyor working environment temperature is usually - 20 ~ 40 ℃, the temperature of the conveying material is commonly - 20 ~ 80 ℃, screw conveyor is suitable for level and layout of the small Angle, inclination Angle with no more than 15 ° advisable, such as the Angle is too large, please choose GX series screw conveyor, or contact our technical department to design alone.
管式螺旋輸送機圖片
Photos

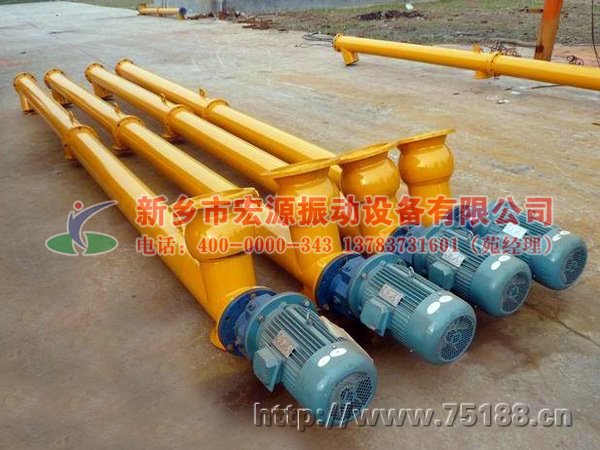

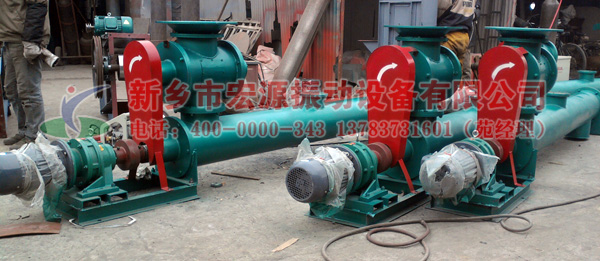

管式螺旋輸送機（帶卸料器）
Pipe screw conveyor is the use of screw rotation and continuous conveying equipment of material, pipe conveyor is fit for cement concrete, flour, grain, chemical fertilizer, ash, sand and gravel, coal powder, small lump coal and other materials.Due to the effective flow area is small in the body and pipe conveyor is unfavorable to lose pounds of perishable materials, viscosity is too big, easy to agglomerate.Pipe screw conveyor can decorate horizontal or inclined conveyor form, tubular screw conveyor if you want to change to the delivery, should make special order pipe screw conveyor is widely used in various industrial sectors, such as concrete mixing station, electric power, chemical industry, food, etc.

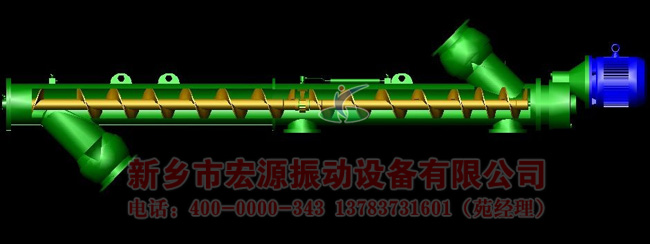

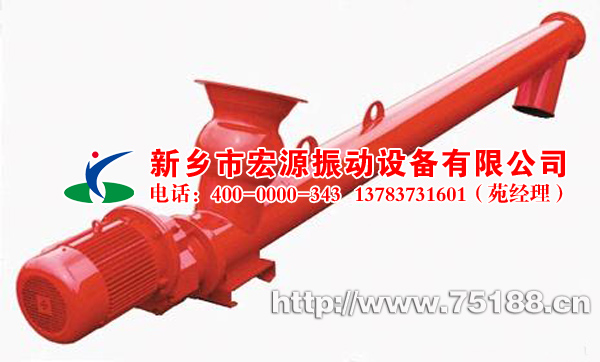

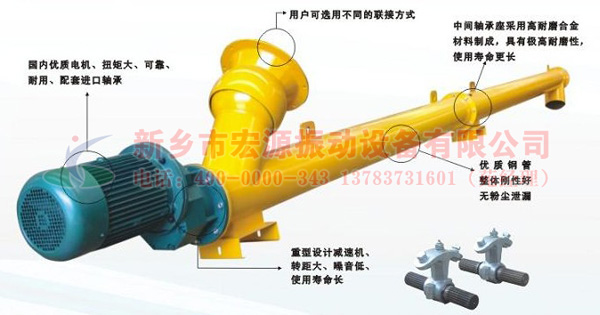

GX管式螺旋輸送機主要結構
Structures
GX管式螺旋輸送機工作特點
2、適應性強、安裝維修方便、壽命長。
3、整機體積小、轉速高、確保快速均勻輸送。
4、密封性好、外殼采用無縫鋼管制作，端部采用法蘭互相連接成一體，剛性好。
Features
1, large carrying capacity, safe and reliable.
2, strong adaptability, easy installation and maintenance, long service life.
3, the machine is small in size, high speed, ensure rapid delivery uniformity.
4, good sealing, shell made of seamless steel tube end use flange connection each other as a body, good rigidity
GX管式螺旋輸送機產品特點
1、高效率的輸送：小直徑、高轉速、變螺距的螺旋體設計，確保產品在工作過程中順暢、快速、均勻上料。
2、隨意的布置：輸送機的外殼采用優質無縫鋼管通過法蘭各段連接為整體，整體剛性好，無論是水平，還是大傾角均可連續輸送，并可直接與其配套的設備連接固定，無需地基基礎，充分利用空間，移動、拆裝十分方便。
3、可靠的密封：潤滑密封可靠無滲漏，既無浪費物料現象，又創造了良好的工作環境。
4、多元化的聯接：進、出料口可采用萬向節、布袋、法蘭聯接方式，還可與我廠生產的蝶閥、插板閥組合聯接。
5、創新的設計：先進合理的設計，結合先進制造工藝和完善的質量保證體系，使其具有體積小，承載轉矩大、噪音低、不滲油等顯著優點。
Characteristic
1, high efficiency of delivery: small diameter, high speed, varying pitch helix design, ensure that the product in the process of work smooth, rapid and uniform loading.
2, random arrangement: conveyor of the shell is made of high quality seamless steel tube by flange for whole paragraphs connection, rigid good, the whole level, or can be continuous transmission of large dip angle, and can be connected directly with matching equipment fixed, without foundation, make full use of space, mobile, tear open outfit is very convenient.
3, reliable sealing, lubrication reliable sealing with no leakage, no waste of materials, and created a good working environment.
4, diversified connection: inlet and discharging mouth can use universal joint, bag, flange connection, but also with our factory production of butterfly valve, flashboard valve combination connection.
5, innovative design, advanced and reasonable design, combined with advanced manufacturing technology and perfect quality assurance system, make it has small volume, carrying large torque, low noise, low permeability oil etc.
GX管式螺旋輸送機主要技術參數:
Parameters| LS型 | 100 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 |
| GX型 | 200 | 250 | 300 | 400 | 500 | ||||||
| 螺旋直徑(mm) | 100 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 |
| 螺距(mm) | 100 | 160 | 200 | 250 | 315 | 355 | 400 | 450 | 500 | 560 | 630 |
| 轉速(r/min) | 140 | 120 | 90 | 90 | 75 | 75 | 60 | 60 | 45 | 35 | 30 |
| 輸送量QΦ=0.33（m3/h） | 2.2 | 7.6 | 11 | 22 | 36.4 | 66.1 | 93.1 | 160 | 223 | 304 | 458 |
| 功率Pd 1=10m(KW) | 1.1 | 1.5 | 2.2 | 2.4 | 3.2 | 5.1 | 4.1 | 8.6 | 12 | 16 | 24.4 |
| 功率Pd 1=30m(KW) | 1.6 | 2.8 | 3.2 | 5.3 | 8.4 | 11 | 15.3 | 25.9 | 36 | 48 | 73.3 |
| 轉速(r/min) | 120 | 90 | 75 | 75 | 60 | 60 | 45 | 45 | 35 | 30 | 20 |
| 輸送量QΦ=0.33（m3/h） | 1.9 | 5.7 | 18 | 18 | 29.1 | 52.9 | 69.8 | 125 | 174 | 261 | 305 |
| 功率Pd 1=10m(KW) | 1.0 | 1.3 | 2.1 | 2.1 | 2.9 | 4.1 | 4.7 | 6.8 | 9.4 | 14.1 | 16.5 |
| 功率Pd 1=30m(KW) | 1.5 | 2.3 | 4.5 | 4.5 | 7 | 8.9 | 11.6 | 20.4 | 28.3 | 42.2 | 49.5 |
| 轉速(r/min) | 90 | 75 | 60 | 60 | 45 | 45 | 35 | 35 | 30 | 20 | 16 |
| 輸送量QΦ=0.33（m3/h） | 1.4 | 4.8 | 15 | 15 | 21.8 | 39.6 | 54.3 | 97 | 149 | 174 | 244 |
| 功率Pd 1=10m(KW) | 0.9 | 1.2 | 1.9 | 1.9 | 2.5 | 3.4 | 4.3 | 5.4 | 8.1 | 9.5 | 13.3 |
| 功率Pd 1=30m(KW) | 1.2 | 2.2 | 3.8 | 3.8 | 5.4 | 6.8 | 9.2 | 16 | 24.4 | 28.6 | 39.9 |
| 轉速(r/min) | 75 | 60 | 45 | 45 | 35 | 35 | 30 | 30 | 20 | 16 | 13 |
| 輸送量QΦ=0.33（m3/h） | 1.2 | 3.8 | 11 | 11 | 17 | 31.7 | 46.5 | 73.0 | 99.3 | 139 | 199 |
| 功率Pd 1=10m(KW) | 0.75 | 1.1 | 1.6 | 1.6 | 2.1 | 3.1 | 3.7 | 4.6 | 5.7 | 7.7 | 11 |
| 功率Pd 1=30m(KW) | 1.1 | 1.8 | 3.4 | 3.4 | 4.4 | 5.6 | 8 | 14 | 16.7 | 23.2 | 33 |
★我公司可根據用戶需要設計制造特殊型號規格的螺旋輸送機。
★我公司對所有技術資料、尺寸保留修改的權利，如實物與文中圖案不符，應以實物為準。
★ My company can design and manufacture according to user needs special specifications of the screw conveyor.
★ For all my company reserves the right to modify technical data, size, such as material object does not accord with the design, the material shall prevail.
