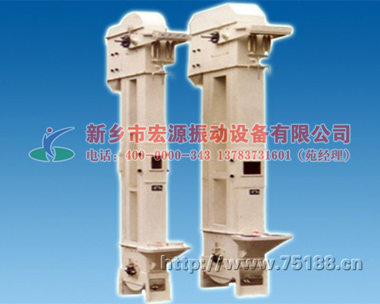

TB型垂直斗式提升機
TB系列斗式提升機產品概述
TB型式斗式提升機（以下簡稱斗提機）系采用板式套筒滾子鏈為牽引構件，料斗固定在鏈板上并連續布置，用流入式裝載，低速重載卸料的斗提機。本機適用于輸送中等及大塊狀的、易碎的和磨琢性的堆積密度小于2t/m3的物料，物料溫度不超過2500C，如塊煤、礦石、卵石、焦碳等 。Product overview
TB type bucket elevator (hereinafter referred to as the bucket machine) in a plate sleeve roller chain as the traction components, hopper fixed on the chain plate and arrangement in a row, with inflows type load, the bucket machine discharging of low speed and heavy loading.The machine is suitable for conveying medium and large block, fragile and grinding cut the bulk density of less than 2 t/m3 material, material temperature not to exceed 2500 c, such as coal, ore, pebble, coke, etc.
TB型斗式提升機用途及特點
TB型垂直斗式提升機廣泛用于礦山、冶金、建材、煤炭、水電等部門垂直提升塊狀、粒狀、粉狀漫壓不超過250℃的物料，如礦石、煤炭、焦炭、水泥、石砂等。是一種新型節能、高效的提升設備，在老廠進行技術改造時，可用其取代，近似規格的HL、PL型垂直斗式提升機。本機具有結構簡單，占地面積小，技術指標先進，工作可靠，使用維修方便等特點。
Features
TB type vertical bucket elevator is widely used in mining, metallurgy, building materials, coal, hydropower and other departments vertical massive, granular, powdery overflow pressure does not exceed 250 ℃ of materials, such as iron ore, coal, coke, cement, sand, etc.Is a new kind of energy saving, high efficiency of lifting equipment, in the old factory technical renovation, replace it are available, and the approximate specifications of HL, PL type vertical bucket elevator.This machine has simple structure, cover an area of an area small, advanced technical indicators, reliable work, convenient use and maintenance, etc.
斗式提升機現場圖片
Working site
TB型斗式提升機選擇須知
Selection guidelinesTB型垂直斗式提升機的結構形式繁多，請按《TH、TB型垂直斗式提升機選用與使用說明書》進行選型設計，提供訂貨總圖或委托制造單位選型設計，但需提供所必需的原始資料。安裝基礎螺栓由用戶自備。
The structure of TB type vertical bucket elevator is various, please press the "TH, TB type vertical bucket elevator pause with operation instruction handbook" for type selection design, provide order general layout or entrust unit type design, manufacture and shall provide the necessary raw materials.Install the foundation bolts should bring along their own by the user.
TB型斗式提升機技術參數表
Parameters| 型號 | 最大給料粒度mm | 料斗 | 提升高度m | 最大提升能力(立方米/h) | 電動機功率 提升機重量 | ||
| 斗距mm | 寬度MM | 容量L | |||||
| TB250 | 90 | 200 | 250 | 3 | 5-40 | 25 | 按具體的垂直斗式提升機訂貨總圖核計確定 |
| TB315 | 100 | 200 | 315 | 6 | 46 | ||
| TB400 | 110 | 250 | 400 | 12 | 75 | ||
| TB500 | 130 | 320 | 500 | 25 | 95 | ||
| TB630 | 150 | 400 | 630 | 50 | 148 | ||
| 注：表中最大輸送能力是按填充系數ψ-0.8計算得出的，僅供參考。 | |||||||
