TG鋼絲繩芯膠帶斗式提升機
TG鋼絲繩膠帶斗式提升機簡介
鋼絲繩芯膠帶斗式提升機牽引構件采用高強度鋼絲繩芯橡膠帶，比膠帶式斗式提升機使用橡膠帶更結實耐用。鋼絲繩芯膠帶斗式提升機克服了鏈條與鏈輪嚙合時驅動產生的動載荷，比鏈條提升更輕便，能以較快的運行速度而達到較高的生產率。采用掏取式裝料，離心式卸料。在同樣的生產條件下，膠帶因其工作速度高和自重較輕，可使物料線載荷和牽引構件的線載荷較小從而減少整機的尺寸、自重。同時，由于膠帶具有良好彈性，柔韌性，在料斗進行裝載時有減振作用。因采用了高強度鋼絲繩芯膠帶，可使提升機的提升高度及輸送量大為提高，適用于干散粉狀物料的垂直提升，被廣泛應于建材、冶金、化工、糧食、電力等行業散狀物料的提升。Product overview
Wire rope belt bucket elevator traction components uses high strength steel rope core rubber belt, than the tape type bucket elevator to use more sturdy rubber belt.Wire rope belt bucket elevator to overcome the chain and sprocket meshing drive the dynamic load, more compact than the chain ascension and can run at a rapid speed and achieve higher productivity.Using tao take type charging, centrifugal unloading.Under the condition of same production, tape because of its high working speed and lighter weight, can make the material line load and traction components line load smaller to reduce size, weight of the machine.At the same time, because the belt has good elasticity, flexibility, in the hopper vibration and loading.Because of the high strength steel wire core tape, can make the hoist hoisting height and greatly improve the throughput, vertical, suitable for dry bulk powder materials should be widely in building material, metallurgy, chemical industry, food, electricity and other material.
TG鋼絲繩膠帶斗式提升機的特點
1.以輸送斗的寬度區分，共有11種規格，最大輸送量1325m3/h，最大提升高度<100米，
2.以抗撕裂型鋼絲繩芯輸送帶為牽引件。
3.本機的頭部、尾部及中部機殼做了有效的密封處理。
4.傳動裝置中采用垂直軸減速器和液力偶合器。
5.傳動裝置中設置了用于設備檢修的慢動裝置。
6.下部張緊裝置采用平衡絲桿式結構形式。
7.下部設有料位計和速度傳感器，對提升機的運轉情況進行監控。
Features
1.In order to distinguish between the width of bucket，a total of 11 kinds of specifications, the maximum throughput of 1325 m3 / h, the biggest hoisting height < 100 meters,
2. Type in tensile steel cord conveyor belt for traction.
3. The chassis of the machine head, tail and central did effective seal processing.
4. The transmission device with vertical shaft reducer and hydraulic coupling.
5. Transmission device set up in slow motion device for equipment maintenance.
6. The lower tensioning device adopted balance screw type structure.
7. The lower material level meter and speed sensor, to monitor the running status of elevator.

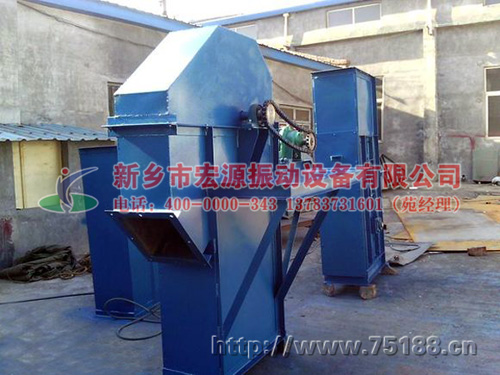

斗式提升機現場圖片
Working site
TG鋼絲繩膠帶斗式提升機型號參數表
Parameters| 規格參數 | TG160 | TG250 | TG315 | TG400 | TG500 | TG630 | TG800 | TG1000 | |
|---|---|---|---|---|---|---|---|---|---|
| 輸送量m 3 /h | 32 | 70 | 96 | 143 | 206 | 329 | 451 | 686 | |
| 料斗 | 容量VO （l ） | 3 | 7 | 10 | 16 | 25 | 39 | 65 | 102 |
| 斗距t （mm ） | 260 | 325 | 360 | 410 | 460 | 520 | 580 | 650 | |
| 每米長料斗及膠帶重（Kg/m ） | 22 | 33 | 33.2 | 42.2 | 62.3 | 78.53 | 106 | 145 | |
| 提升速度m/s | 1.4 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | |
| 最大提升高度 | 100m | ||||||||
| 注：提升高度超過80m 時，需特殊設計。 | |||||||||
