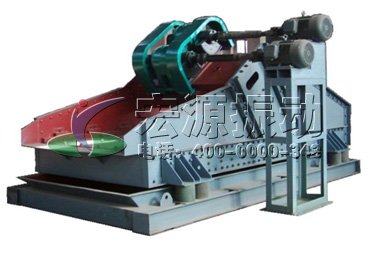

SZR系列熱礦篩

SZR系列熱礦振動篩簡介

    SZR系列熱礦振動篩專供燒結廠完成熱燒礦的分級和向冷卻設備均勻給料作業，是我公司的重點產品之一。根據用戶的要求，我公司承擔不同規格型號熱礦篩的設計制造

Product overview
   SZR series hot mining vibrating screen for sintering plant of sinter ore grade and to the cooling equipment uniform feeding operation, is one of the key products of my company.According to the requirements of users, my company to undertake design and manufacture different types of hot griddle

SZR系列熱礦振動篩工作原理和結構特點

    SZR系列熱礦振動篩為座式安裝，采用雙軸振動器振動。雙軸振動器兩根軸由兩臺電動機分別帶動做反向自同步旋轉，使篩箱產生直線振動。電動機安裝在篩箱側面的固定支架上，故電動機不參振。
電動機和雙軸振動器之間，兩臺雙軸振動器之間均采用萬向聯軸器連接，萬向聯軸器同時具有角度和長度的補償作用，可以滿足篩機工作時電動機和激振器之間的相對位移要求。
根據電動機和振動器安裝位置的不同，熱礦振動篩可制定成上振式或下振式。
    SZR系列熱礦篩均配備二次隔振系統，對基礎的動負荷較小，使用于有隔振減振要求，安裝高度允許的場合。
熱礦篩篩箱的側板與橫梁采用優質耐熱不銹鋼（或優質耐熱鋼）制造，主板和側板之間，側板和橫梁的連接采用環槽鉚釘連接，連接緊固可靠。
熱礦振動篩工作時，篩板與高溫物料接觸，要求有較好的耐磨、耐熱性能，故采用耐熱合金鑄鋼。工作時篩板會受熱膨脹，篩板固定裝置采用斜插緊固，并設有熱補償機構，可保證工作溫度狀態下，篩板固定牢靠，篩板拆裝也比較方便。

Working principles and Features
    SZR series hot mining vibrating screen is a type of installation, the biaxial vibrator vibration.Biaxial vibrator two axis respectively by two electric motors to drive do reverse self synchronous rotation, makes the screen box produce linear vibration.Motor installed in the fixed bracket on the side of the screen box, so the motor is not concluded.
Between motor and biaxial vibrator,and between two biaxial vibrator adopt universal shaft coupling, universal coupling with angle and length of the compensation function at the same time, can meet the sieve machine motor at work and the relative displacement between the vibrator.
Depending on the motor and the vibrator is installed, heat ore vibrating screen can be set into vibration type or under vibration pattern.
   SZR series hot griddle were equipped with the secondary vibration isolation system, on the basis of the dynamic load is small, used in vibration isolation vibration reduction requirements, installation height allowed.
Hot ore sieve screen box side plate and beam is made of high quality heat-resistant stainless steel or high quality heat resistant steel manufacturing, motherboard and side panel, side panel and beam connection using ring groove rivet connection, reliable connection fastening.
Hot mining vibrating screen is working, sieve plate contact with high temperature materials, has good abrasion resistance, heat resistance, heat resistant alloy steel casting is adopted.Work sieve plate heat expansion, sieve plate fixation device adopts oblique clamp, and is equipped with thermal compensation mechanism, can guarantee the working temperature conditions, screen plate fixation, sieve plate dismantling is convenient.

SZR系列熱礦振動篩（熱礦篩）產品型號說明

Types Explaination

SZR □ □
┬  ┬ ┬
│  │ │
│  │ └────────-　篩面長度dm
│  └──────────　篩面寬度dm)　
└────────────　熱礦篩系列代號

SZR系列熱礦振動篩（熱礦篩）的運輸與保管

      篩子應在水平情況下起吊，起吊后要保持篩子平衡。要用鋼絲繩套在篩框的起吊孔上起吊，不允許吊篩子的其它部位。篩子分為篩箱（包括振動器）、隔振架、電動機及電機架三部分運輸。在工地現場拖拉運輸時，篩箱下部應墊若干滾杠，地面要平整，鋼絲繩應兜住篩框下部剛度較大部位。設備到貨后，應根據發貨清單檢查設備是否齊全，裝運過程中是否造成損壞。存放地面平整，篩子應有枕木墊起，不得與地面接觸，更不得被水浸泡。露天存放時，上部應遮蓋。
    宏源科技專業生產熱礦振動篩等各種振動篩設備，質量上乘，信譽保證，咨詢熱線：0373-2678028，聯系人：苑經理。

Transportation and storage

After the screen should be under the condition of horizontal lifting, the lifting to keep balance of screen.To use wire rope on the lifting hole of sieve box set lifting, are not allowed to other parts of the crane sieve.Screen is divided into screen box (including vibrator), vibration isolation frame, motor frame three parts transportation and electricity.Drag transportation at the site, the lower part of screen box should be several rollarounds pad, the ground should level off, the wire rope should bear live screen lower stiffness is bigger parts.After the arrival of the goods, the equipment should be according to the shipping list to check whether the equipment is complete, the shipment is damaged in the process.Storage ground level off, the sieve should be sleeper pads, can not contact with the ground, nor is soaked by water.In open air, upper part should be covered.
Hongyuan specializing in the production of thermal vibration ore vibrating screen and vibrating screen equipment, good quality, credit guarantee, hotline: 0373-2678028, contact: center manager.
