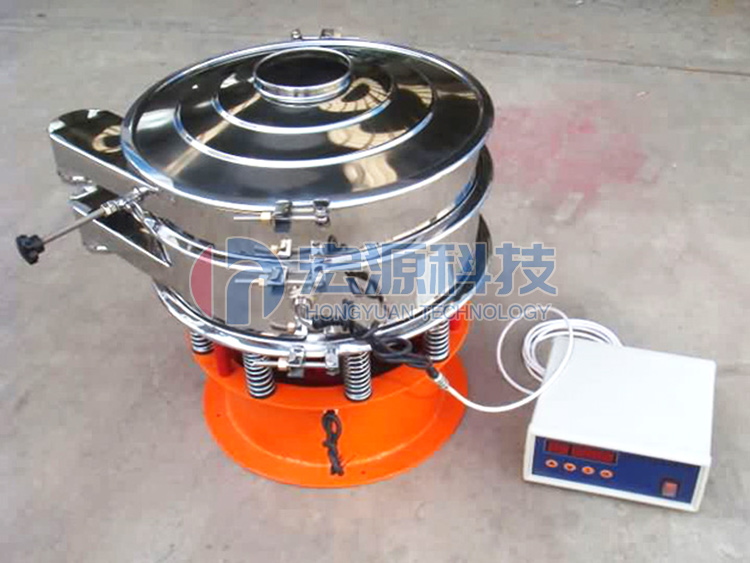

CSB系列超聲波振動篩

CSB系列超聲波旋振篩產品概述

    超聲波振動篩是在XZS系列旋振篩基礎上換裝了超聲波網架，通過超聲波電源和超聲波換能器將超聲波轉換為高頻機械波，并傳遞給篩面，以達到良好篩分目的。多用于超細粉、超微粉的篩分作業。

Summarize
  Ultrasonic vibrating screen is changed ultrasonic grids on the basis of XZS series rotary vibration sieve.Through ultrasonic power and ultrasonic transducer,converts ultrasonic high-frequency into mechanical wave, and passed on to the screen surface, in order to achieve good screening purpose.Which are use for the powder, superfine powder sieving.

　
    CSB系列超聲波旋振篩是在XZS系列旋振篩的基礎上引入了超聲波清網裝置，通過將220V、50Hz或110V、60Hz電能轉化為18KHz的高頻電能，輸入超聲換能器，將其變成18KHz機械振動，從而達到高效篩分和清網的目的，使超微細粉篩分成為易事。該系統在傳統的振動篩基礎上在篩網上引入一個低振幅、高頻率的超聲振動波（機械波），以改善超微細粉體的篩分性能。特別適合高附加值精細粉體的用戶使用。
    CSB series ultrosonic vibrating screen is leading in ultrosonic cleaning network device.To screen and clean efficiently, this ultrasonic vibrating screen(Ultrasonic Separators) can convert the electric energy of 220V, 50Hz to the high frequency electric energy of 110V, 60Hz, and imporove the vibrating sieving frequency.In order to improve ultrafine powder screening performance,the system lead in a ultrosonic vibration wave(mechanical wave)of low amplitude,high frequency on the screen net,based on the traditional rotary vibrating screen.It very suitbal for high value-added fine powder of users.

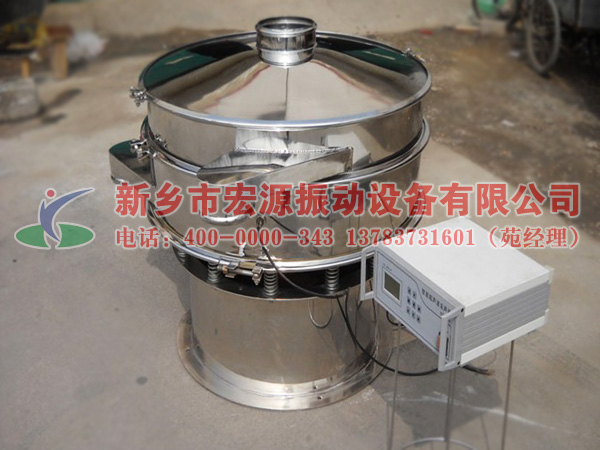

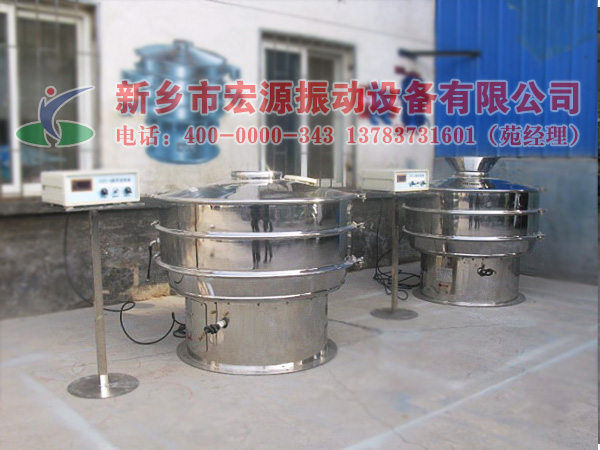

不銹鋼超聲波振動篩

超聲波振動篩動畫演示

Animations Shown

CSB系列超聲波旋振篩的性能特點

　　 超聲波篩分系統能夠篩分普通篩分機不能分離的重質、輕質、超細、強吸附性粉末,幾乎對所有難篩分的粉末有效。附加在篩網上的超聲振動波（機械波），使超微細粉體接受巨大的超聲加速度，改善低密度粉在重力沉降中的平降（粉末與網口輕接觸）、滑移效應，改善高密度金屬在網口的滯留或楔入，改善帶靜電粉體的粘附效應，從而提高篩分效率和篩分質量。用篩分通過率表示，一般情況下比不加超聲振動篩增加通過率50%—400% 。它的性能特點有：
　　 ⑴減少或不產生清網時間；
　　 ⑵不產生彈跳球等輔助物對粉體的污染；
　　 ⑶保持網口尺寸，穩定篩分精度；
　　 ⑷分解粘附物質，減少篩上物；
　　 ⑸減少篩分次數。
Features
      Ultrasonic screening system can separate heavy, light, super fine, strong adsorption powder, almost of all difficult to effective screening of powder.Attached to the screen  mesh of the ultrasonic vibration wave (mechanical wave), makes the ultra micro powder accept huge ultrasonic acceleration,Improving low density powder horizontal decent(powder contact with the net) in gravity settling,domino offect,improving high density metal  retention or wedged in the net, Improving the adhension effect of electrostatic powder, so as to improve the screening efficiency and screening quality improvement with the adhesion effect of electrostatic powder, thus improve the screening efficiency and quality of screening.In screening pass rate, usually passing rate of 50% - 400% more than without ultrasonic vibrating screen.
    1, to reduce or not produce clear net time.
    2, Does not produce the AIDS such as rubber ball to powder pollution in screening process
    3, keep size, stable screening accuracy.
    4, decomposition adhesive material, reduce material on the screen.
    5, reducing frequency of screening.

CSB系列超聲波旋振篩的產品特點

1、優秀的篩分能力和更高的篩分精度，實現高精度篩分，精度可提高1—70%，產量可提高0.5-10倍。
2、有效防止篩網堵塞，難篩分的物料也幾乎不會堵塞網孔。能夠控制較窄的粒度范圍。
3、 真正解決強吸附性、易團聚、高靜電、輕比重物料的篩分難題。
4、保證所篩分物料的特性不變。
5、數字信號輸入，實現頻率自動跟蹤。
6、換能器能量轉換效率高（達到國外同行標準）。
7、24小時連續工作，控制電源和換能器不需降溫（達到國際同類產品標準）。
8、換能器與篩網采用螺扣連接，便于拆裝、清潔。
9、分離式結構，具有共振環，效果好，篩網壽命長。
10、能篩分25μm的粉粒，能過濾10μm的液體。
11、不需要橡膠球清網，杜絕橡膠磨損引起的再污染。
12、粘接式篩網固定網架，無污染，無死角，受力均勻，更換方便。

Characteristic
1, excellent sieving ablity and higher screening accuracy, achiving high precision sieving, accuracy of 1-70%, capacity can increase 0.5 to 10 times.
2, effectively prevent the mesh plug, the material hard to sieve mesh is almost not jams.Can control a narrow particle size range.
3, real solution of strong adsorption, easy to reunite, high electrostatic, lightweight materials screening problem.
4, ensure the screening materials characteristics unchanged.
5, digital signal input, to realize automatic frequency tracking.
6, transducer, high energy conversion efficiency (standard to foreign counterparts)
7, 24 hours of continuous work, the control power supply and the transducer without cooling (reached the international similar product standards).
8, transducer and sieve mesh adopts screw connection, convenient for dismantling and cleaning.
9, separation structure has resonance loop, effect is good, screen mesh long service life.
10, 25 microns of powder to screening , can filter the liquid of 10 microns.
11, don't need a rubber ball cleaning net, put an end to rubber abrasion caused by pollution.
12, adhesive type screen mesh fixed network frame, no pollution, no dead Angle, to receive strength evenly, easy to change.

CSB系列超聲波旋振篩適用范圍

    碳化硅、棕剛玉、白剛玉、鉬粉、鎢粉、鈷粉、鎳粉、不銹鋼粉、合金粉末、粉末涂料、石英粉、金剛粉、電磁粉、激光粉、鋁粉、電解銅粉、研磨粉、耐火材料、夜光粉、玻璃微珠、橡膠助劑、糖粉、淀粉、鹽類、豆奶粉、原料藥中間體等普通篩機不好篩分的各種物料。

    注：超聲波振動篩是在XZS系列旋振篩基礎上換裝了超聲波網架，通過超聲波電源和超聲波換能器將超聲波轉換為高頻機械波，并傳遞給篩面，以達到良好篩分目的。該系列超聲波振動篩篩機技術參數等同于XZS系列旋振篩參數，詳細參數可以參考XZS系列旋振篩。

    超聲網通——超聲系統擴展使用：
　　 用同一個超聲電源，連接一個清網換能器，用超聲換能器的輻射面與被堵塞的網面接觸，相對位移,即可清除網口的堵塞物。具有快速高效改善清網質量、不改變網口尺寸、不傷害絲網表面質量等優點,可廣泛應用于試驗篩和工作篩。

Applications.
    Silicon carbide, corundum, white corundum, molybdenum powder, tungsten powder, cobalt powder, nickel powder, stainless steel powder, alloy powder, powder coating, quartz powder, diamond powder, magnetic powder, laser powder, aluminum powder, electrolytic copper powder, polishing powder, refractory materials, luminous powder, glass beads, rubber additives, sugar powder, starch, salt, soy, API intermediates,  that ordinary sieve machine is difficult to screen.
    Notes:Ultrasonic vibrating screen is changed ultrasonic grids on the basis of XZS series rotary vibration sieve.Through ultrasonic power and ultrasonic transducer,converts ultrasonic high-frequency into mechanical wave, and passed on to the screen surface, in order to achieve good screening purpose.The parameter of the series is the same as XZS series,detailed parameters please refer to XZS series.
   Using ultrasound netcom - ultrasound system extension
With the same ultrasonic power supply, connect to a transducer, making the radiating surface of ultrasonic transducer and the blockage of net surface contact, relative displacement, can remove so plugs.Its fast and efficient to improve network quality.Keep size, don't hurt the  screen surface quality, can be widely applied in the test sieve sieve and work.

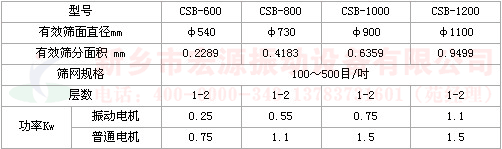

CSB系列超聲波旋振篩技術參數

Parameters
