不銹鋼超聲波振動篩

超聲波振動篩產品概述

     超聲波振動篩是將220V、50Hz或110V、60Hz電能轉化為18KHz的高頻電能，輸入超聲換能器，將其變成18KHz機械振動，從而達到高效篩分和清網的目的，使超微細粉篩分成為易事。該系統在傳統的旋振篩基礎上在篩網上引入一個低振幅、高頻率的超聲波振動波（機械波），以改善超微細粉體的篩分性能。特別適合高附加值精細粉體的用戶使用。

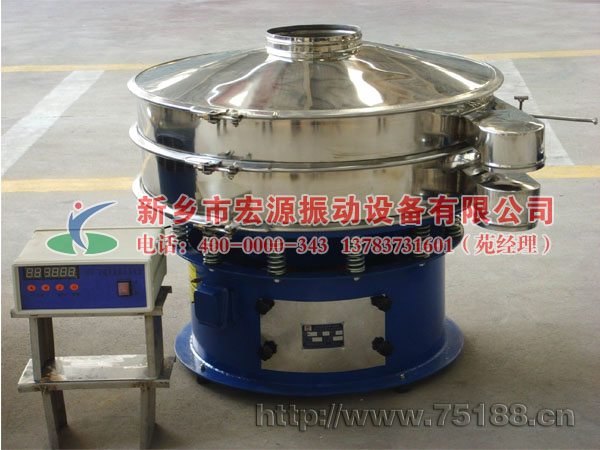

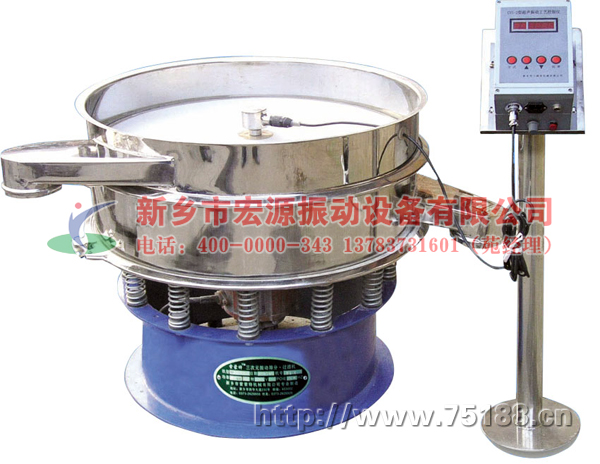

    不銹鋼超聲波振動篩材質為不銹鋼，適用于食品、化工、醫藥等行業。

Summarize
   To screen and clean efficiently, this ultrasonic vibrating screen(Ultrasonic Separators) can convert the electric energy of 220V, 50Hz to the high frequency electric energy of 110V, 60Hz, and imporove the vibrating sieving frequency.In order to improve ultrafine powder screening performance,the system lead in a ultrosonic vibration wave(mechanical wave)of low amplitude,high frequency on the screen net,based on the traditional rotary vibrating screen.It very suitbal for high value-added fine powder of users.
    Stainless steel ultrasonic vibrating screen is made of stainless steel.suitbal for food,chemical,phamaceutical and other industries.

超聲波振動篩動畫演示

Animation Shown

超聲波振動篩產品概述

     改善低密度粉在重力沉降中的平降（粉末與網口輕接觸）、滑移效應，改善高密度金屬在網口的滯留或楔入，改善帶靜電粉體的粘附效應，從而提高篩分效率和篩分質量。用篩分通過率表示，一般情況下比不加超聲波振動篩增加通過率50%—400% 。
      Improving low density powder horizontal decent(powder contact with the net) in gravity settling,domino offect,improving high density metal  retention or wedged in the net, Improving the adhension effect of electrostatic powder, so as to improve the screening efficiency and screening quality improvement with the adhesion effect of electrostatic powder, thus improve the screening efficiency and quality of screening.In screening pass rate, usually passing rate of 50% - 400% more than without ultrasonic vibrating screen.

不銹鋼超聲波振動篩


     1、減少或不產生清網時間。
     2、篩分過程中不產生橡膠球等輔助物對粉體的污染。
     3、保持網口尺寸，穩定篩分精度。
    4、分解粘附物質，減少篩上物。
    5、減少篩分次數。

   1, to reduce or not produce clear net time.
   2, Does not produce the AIDS such as rubber ball to powder pollution in screening process
   3, keep size, stable screening accuracy.
   4, decomposition adhesive material, reduce material on the screen.
   5, reducing frequency of screening.

超聲波振動篩技術參數

Parameters

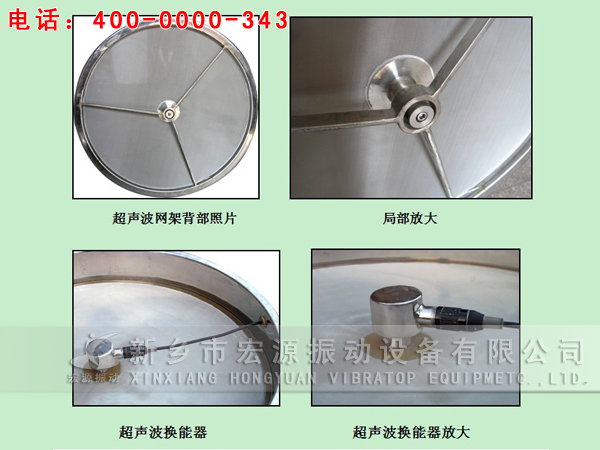

    超聲波換能器 ——超聲波系統擴展使用用同一個超聲電源，連接一個清網換能器，用超聲波換能器的輻射面與被堵塞的網面接觸，相對位移,即可清除網口的堵塞物。具有快速高效、改善清網質量、不改變網口尺寸、不傷害 絲網表面質量等優點,可廣泛應用于試驗篩和工作篩。
    我公司可以根據客戶要求定制設計超聲波振動篩。電話：13783731601
    Ultrosonic wave transducer----ultrasonic system extension uses the same ultrasonic power,connect with a Clear net transducer,With radiating surface of the ultrasonic transducer and the blockage of net surface contact, relative displacement, can remove so plugs.With fast and efficient, improving the network quality, don't change size,  don't hurt the screen surface quality, can be widely applied in the test sieve sieve and work.
   My company can custom design of ultrasonic vibrating screen according to customer request.Telephone: 13783731601
