三次元振動篩分機
旋振篩產品概述
三次元振動篩分過濾機又稱旋振篩，振動篩，震動篩，圓振篩，過濾機。我廠專業生產三次元振動篩分過濾機（旋振篩）和各種振動設備，,產品設計精巧、功能卓越、品質優秀、用途廣泛。
1、體積小、重量輕、移動方便、出料口方向可任意調整，粗、細料自動排出，可自動化或人工作業。
2、篩分精度高、效率高，任何粉、粒、粘液類均可使用。
3、篩網不阻塞、粉末不飛揚、篩分最細可達500目（28微米）過濾最細可達5微米。
4、獨特網架設計（子母式）、篩網使用長久、換網方便、僅需3—5分鐘、操作簡單、清洗方便。
5、無機械動作、保養簡易、可單層或多層使用、與物料接觸部位為用不銹鋼制作（醫藥用除外）。
Product Overview
Three dimensional vibrating screen filter is also called rotary vibration sieve, vibrating screen, vibration sieve, round vibration sieve, filter.Our factory specializing in the production of three dimensional vibrating screen (rotary vibration sieve) and a variety of vibration equipment, and product design is exquisite, functional excellence,excellent quality,wide range of USES.
2, screening of high precision, high efficiency and is applicable to any powder, granule, mucus.
3, no screen blocking, powder does not float, screening the most fine of up to 500 mesh (28 micron) up to 5 micron filter the finest.
4, unique grid design (child) of type of mother, the screen use for a long time, , convenient to replace the mesh only 3 to 5 minutes, simple operation, easy to clean.
5, no mechanical action and maintenance simple and easy, can be used single or multi-layer, and material contact part is made of stainless steel (except for medical use).

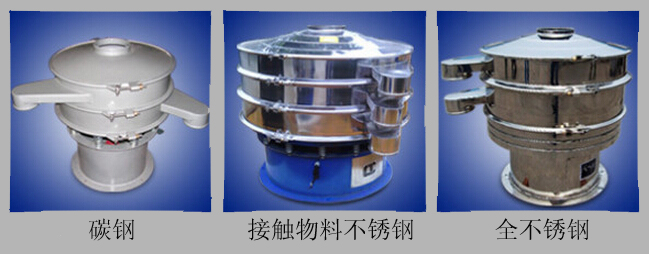

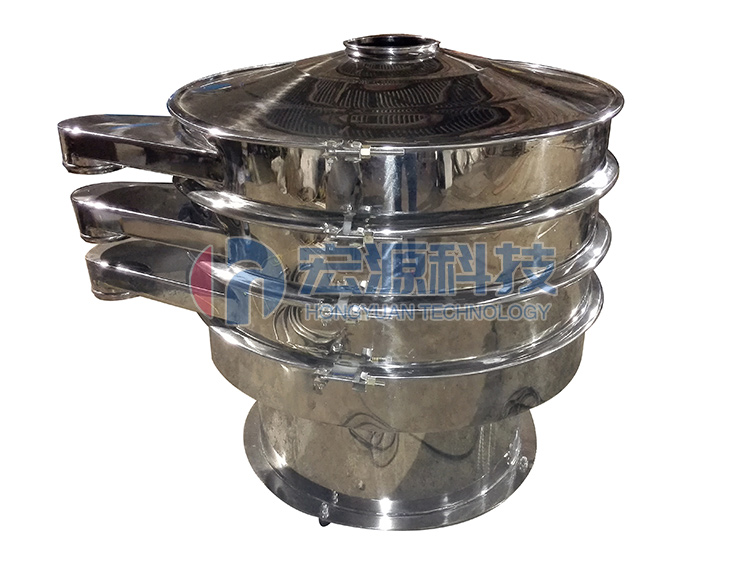

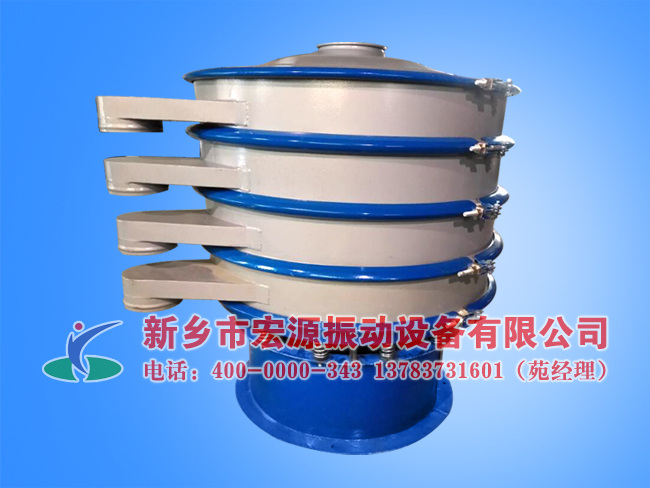

碳鋼材質旋振篩 全不銹鋼旋振篩

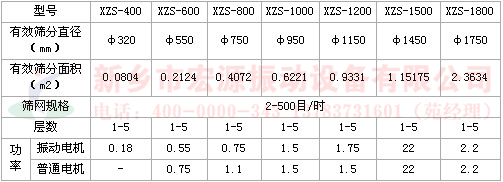

旋振篩主要技術參數
Parameters
旋振篩主要應用行業
旋振篩應用行業：食品行業專用旋振篩、化工行業專用旋振篩、制藥行業專用旋振篩、陶瓷行業專用旋振篩、磨料磨具行業專用旋振篩、冶金行業專用旋振篩等等：
食 品 行 業：面粉、奶粉、淀粉、魚粉、米粉、維生素、調味品、糊精、飲料、果汁、砂糖、醬油、鳳梨汁、酵母液等
化 工 行 業：油漆、樹脂粉、PVC樹脂粉粒、檸檬酸、聚乙烯粉、洗衣粉等
制 藥 行 業：醫藥中間體、醫用輔料、中藥粉、中藥液、西藥粉、西藥液等
陶瓷磨料冶金行業：鋁銀漿、泥漿、高嶺土、石英砂、氧化鋁、人造黑鋁、石墨、碳化硅、噴霧土粒、金剛砂、鐵粉、二氧化鈦、電解銅粉等。
Applications
Rotary vibration screen application industries: food industry dedicated special vibration sieve spin vibration sieve, chemical industry, pharmaceutical industry special vibration sieve, ceramic industry is special vibration grinding tools for spin vibration sieve, sieve, metallurgical industry special vibration sieve, etc. :
Chemical industry: PVC tree powder paint, powder, granule, citric acid, polyethylene powder, washing powder, etc
Pharmaceutical industry: pharmaceutical intermediates, medical materials, powder, liquid, powder, western medicine, etc
Ceramic abrasive metallurgical industry: aluminum silver paste, slurry, kaolin, quartz, alumina, aluminum artificial black, graphite, silicon carbide, spray soil particles, emery, iron powder, titanium dioxide, electrolytic copper powder, etc.
旋振篩動畫演示
Animation Shown

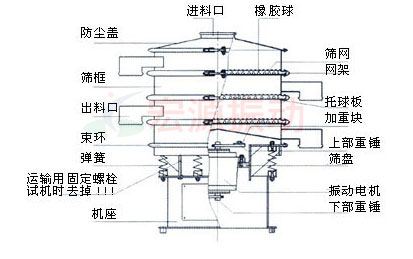

旋振篩一般結構圖
Structures
旋振篩設備振動力的調整
通過改變振動電機的上下2塊偏心塊的夾角和質量，振動電機即可帶動設備產生不同大小的振動力，從而改變水平或垂直方向的振動幅度，進而改變篩分的流量和效率。下面表述幾個角度調整的一般特征。
Vibratory force adjustment
By changing the vibration motor fluctuation two eccentric blocks angle and quality,vibration motor can drive the device to produce different sizes of vibration force, and transform the vibration amplitude of the horizontal and vertical direction, and change the flow rate and the efficiency of screening.The following describe general features of several Angle adjustment.
|
0度 適用于對原料進 行大量的粗篩分 |
35度 適用于大多數原 料的篩分 |
60度 適用于精細原料 的精篩分 |
90度 特殊用途 |

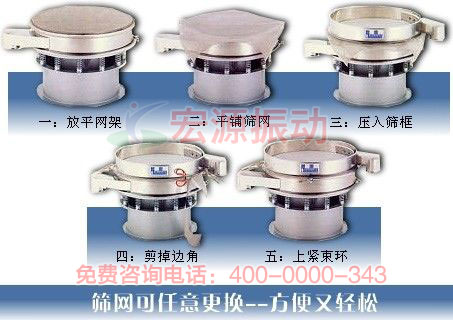

旋振篩更換篩網方法
Ways of changing the mesh
