YZD系列振動電機

振動電機是動力源與振動源結合為一體的激振源，振動電機是在轉子軸兩端各安裝一組可調偏心塊，利用軸及偏心塊高速旋轉產生的離心力得到激振力。振動電機的激振力利用率高、能耗小、噪音低、壽命長。振動電機的激振力可以無級調節，使用方便，JZO、YZU、YZO、 YZS、YZD、TZDC 等型號的振動電機為通用型振動電機。振動電機可以應用于一般振動機械，如：振動破碎機、振動篩分機、振動打包機、振動落砂機、振動造型機、振動打樁機、振動提升機、振動充填機、料倉的振動破拱防閉塞裝置等等。廣泛的應用在水電建設、火力發電、建筑、建材、化工、采礦、煤炭、冶金、輕工等工業部門。
Vibration motor is the power source and vibration source in combination with the source of vibration, the vibration motor is on both ends of the rotor shaft installed a set of adjustable eccentric block, the centrifugal force generated by high speed rotation shaft and eccentric block vibration force.High utilization rate of the exciting force of vibration motor, low energy consumption, low noise, long service life.Vibration motor vibration force can be adjusted, easy to use, JZO, YZU, YZO, YZS, YZD and TZDC type vibration motor as vibration motor.Vibration motor can be applied to general vibration machinery, such as: vibration crusher, vibrating screen extension, packing machine, vibration shakeout machine, vibration molding machine, vibration pile driver, hoist, vibration filling machine, the vibration of the bunker broken arch block and so on.Widely used in hydropower construction, thermal power, construction, building materials, chemical, mining, coal, metallurgy, light industry and other industrial sectors.

振動電機除了可以應用與一般振動機械外，還可以組合多種振動形式。如：平旋型，渦旋型，搖動振動型，組合直線型，組合長橢圓型，復合雙頻型，復合雙幅型等。由這些振動形式可以產一些過去所沒有的新型振動機械。

YZD系列振動電機是新型號振動電機, 特點是體積小巧, 外形美觀, 性價比高等。與其它振動電機不同的是它的外殼和機座是一體鑄造完成，改進了工藝，減少了成本，提高了防塵性能。

YZD振動電機是機座聯體電機，密封性能高于普通振動電機。

In addition to application and general vibration mechanical vibration motor, also can combine a variety of vibration mode.Such as: swing, vortex, shaking vibration type, combination straight, long elliptic type, compound dual-band type, compound type double amplitude, etc.By these vibration form can produce some past have no of new vibration machine.
YZD series motor is a new type of vibration motor, vibration is characterized by small size, beautiful appearance, high cost performance.Unlike other vibration motor shell and frame is a whole casting, improved the process to reduce the cost and improve the performance of dust.
YZD motor is stand couplet body vibration, sealed performance is higher than ordinary vibration motor.

YZD系列振動電機技術參數表

Parameters

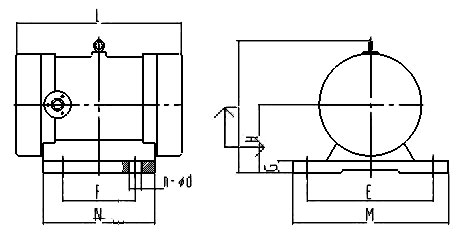

JZO振動電機安裝尺寸

型號	激振力 (KN)	功率 (kw)	電流（A)	振頻(r/min)	安裝尺寸										重量（Kg)
型號	激振力 (KN)	功率 (kw)	電流（A)	振頻(r/min)	E	F	G	H	I	L	M	N	n	φd	重量（Kg)
YZD-1.5-2	1.5	0.12	0.36	3000	130	80	19	80	200	240	164	118	4	12	13
YZD-2.5-2	2.5	0.22	0.66		130	80	19	80	200	240	164	118	4	12	14
YZD-3-2	3	0.25	0.75		150	90	21	90	220	250	185	124	4	14	20
YZD-5-2	5	0.37	1.11		150	90	21	90	220	270	185	124	4	14	21
YZD-10-2	10	0.75	2.25		180	110	27	112	238	335	225	155	4	18	31
YZD-15-2	15	1.1	3.3		220	140	32	125	265	370	272	190	4	22	47
YZD-20-2	20	1.5	4.5		260	150	40	140	320	452	344	234	4	26	68
YZD-30-2	30	2.2	6.6		310	170	57	170	365	505	400	270	4	33	107
YZD-50-2	50	3.7	11.1		350	220	52	200	425	600	450	313	4	39	210
YZD-1.0-4	1	0.09	0.27	1500	130	80	19	80	200	245	164	118	4	12	13
YZD-1.5-4	1.5	0.12	0.36		130	80	19	80	200	240	164	118	4	12	16
YZD-3-4	3	0.18	0.54		150	90	21	90	220	260	185	124	4	14	22
YZD-5-4	5	0.25	0.75		180	110	27	112	238	335	225	155	4	18	32
YZD-10-4	10	0.55	1.65		220	140	32	125	265	370	272	190	4	22	49
YZD-15-4	15	0.75	2.25		260	150	42	140	320	452	344	234	4	26	76
YZD-20-4	20	1.1	3.3		260	150	42	140	320	452	344	234	4	26	82
YZD-30-4	30	1.5	4.5		310	170	57	170	365	505	400	270	4	33	117
YZD-50-4	50	2.2	6.6		350	220	33	190	425	600	450	313	4	33	219
YZD-75-4	75	3.7	11.1		380	250	35	220	500	670	480	350	4	39	360
YZD-1.5-6	1.5	0.12	0.36	1000	150	90	21	90	220	270	185	124	4	14	22
YZD-3-6	3	0.25	0.75		180	110	27	112	238	335	225	155	4	18	35
YZD-5-6	5	0.37	1.11		220	140	32	125	265	370	272	190	4	22	50
YZD-10-6	10	0.75	2.25		260	150	42	140	320	452	344	234	4	26	82
YZD-15-6	15	1.1	3.3		310	170	57	170	365	505	400	270	4	33	125
YZD-20-6	20	1.5	4.5		310	170	57	170	365	505	400	270	4	33	130
YZD-30-6	30	2.2	6.6		350	220	33	190	425	600	450	313	4	39	190
YZD-40-6	40	3	9		350	220	35	190	425	600	450	313	4	39	190
YZD-50-6	50	3.7	11.1		380	250	35	210	465	670	480	350	4	45	300
YZD-75-6	75	5.5	16.5		440	250	35	220	500	730	480	350	4	45	400
YZD-100-6	100	7.5	22.5		440	280	40	240	550	750	570	450	4	45	420
YZD-125-6	125	8.5	25.5		440	280	40	240	550	750	570	450	4	45	468
