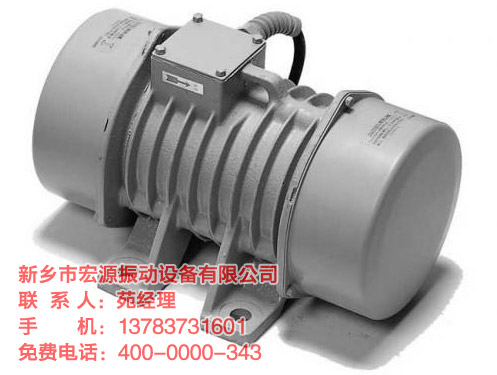

YZO系列振動電機
YZO系列振動電機簡介
YZO系列振動電機是動力與振動兩源合一的特種異步電動機，結構簡單，使用方便，是各種振動設備的新型、節能、通用激振源。具有以下特點：A、體積小、質量輕、安裝方便、運行費用低
B、激振力可調
C、振頻穩定，效率高，不需要復雜的傳動裝置
D、耐振性強，動力距大，噪音低
E、全封閉結構，適用于各種粉塵較多的場合
product overview
YZO series vibration motor is power and the joining together of two source special asynchronous motor, simple structure, convenient use, is all sorts of new type of vibration equipment, energy saving, general vibration source.Has the following features:
A, small volume, light quality, easy installation, low operating cost
B, vibration force is adjustable
C, vibration frequency stability, high efficiency, does not need complex transmission device
D, strong resistance to vibration, power distance, low noise
E, fully closed structure, suitable for all kinds of dust more occasions
YZO系列振動電機使用條件
A、環境溫度不超過40度（若超過40度應降低功率使用）B、軸承的允許溫度（溫度計法）不超過95度
C、使用地區海拔不超過1000米，若超過1000米，每增高100米，其溫升值應降低0.5度，但不得超過4000米使用
D、使用環境空氣應無導電粉塵，不得含有易燃、易爆及腐蝕性氣體
Conditions of usage
YZO series vibration motor is power and the joining together of two source special asynchronous motor, simple structure, convenient use, is all sorts of new type of vibration equipment, energy saving, general vibration source.Has the following features:
A, small volume, light quality, easy installation, low operating cost
B, vibration force is adjustable
C, vibration frequency stability, high efficiency, does not need complex transmission device
D, strong resistance to vibration, power distance, low noise
E, fully closed structure, suitable for all kinds of dust more occasions
YZO振動電機技術參數
Parameters
| 型 號 | 激振力(KN) | 功率 | 電流(A) | 振頻(r/min) | 安 裝 尺 寸 | 重 量 （Kg) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E | F | G | H | I | L | M | N | n | φd | ||||||
| YZO-1.5-2 | 1.5 | 0.15 | 0.35 | 3000 | 180 | 124 | 30 | 82 | 203 | 300 | 210 | 150 | 4 | 10 | 19 |
| YZO-2.5-2 | 2.5 | 0.25 | 0.58 | 180 | 150 | 25 | 82 | 198 | 328 | 220 | 178 | 4 | 12 | 24 | |
| YZO-5-2 | 5 | 0.4 | 1.15 | 220 | 176 | 35 | 91 | 26 | 362 | 270 | 208 | 4 | 14 | 37 | |
| YZO-8-2 | 8 | 0.75 | 1.84 | 236 | 180 | 30 | 142 | 301 | 427 | 292 | 247 | 4 | 18 | 53 | |
| YZO-16-2 | 16 | 1.5 | 3.84 | 236 | 200 | 30 | 142 | 301 | 451 | 292 | 267 | 4 | 18 | 75 | |
| YZO-2.5-4 | 25 | 0.25 | 0.58 | 1500 | 180 | 150 | 25 | 82 | 198 | 328 | 220 | 178 | 4 | 12 | 27 |
| YZO-5-4 | 5 | 0.4 | 1.15 | 220 | 176 | 35 | 91 | 216 | 388 | 270 | 208 | 4 | 14 | 43 | |
| YZO-8-4 | 8 | 0.75 | 1.84 | 236 | 180 | 30 | 142 | 301 | 427 | 292 | 247 | 4 | 18 | 61 | |
| YZO-10-4 | 10 | 1 | 2.3 | 236 | 180 | 30 | 142 | 301 | 473 | 292 | 247 | 4 | 18 | 75 | |
| YZO-17-4 | 17 | 0.75 | 1.8 | 260 | 150 | 25 | 135 | 350 | 420 | 320 | 240 | 4 | 27 | 78 | |
| YZO-20-4 | 20 | 2 | 4.1 | 270 | 224 | 30 | 163 | 370 | 525 | 330 | 298 | 4 | 20 | 135 | |
| YZO-30-4 | 30 | 2.5 | 5.75 | 326 | 184 | 35 | 195 | 425 | 530 | 400 | 306 | 4 | 30 | 168 | |
| YZO-50-4 | 50 | 3.7 | 7.4 | 326 | 184 | 35 | 195 | 425 | 530 | 400 | 306 | 4 | 30 | 180 | |
| YZO-75-4 | 75 | 5.5 | 11 | 440 | 248 | 37 | 240 | 512 | 650 | 530 | 400 | 4 | 36 | 350 | |
| YZO-5-6 | 5 | 0.4 | 1.15 | 1000 | 220 | 176 | 35 | 91 | 216 | 388 | 270 | 216 | 4 | 14 | 48 |
| YZO-8-6 | 8 | 0.75 | 1.84 | 236 | 180 | 30 | 142 | 301 | 471 | 292 | 247 | 4 | 18 | 65 | |
| YZO-10-6 | 10 | 0.75 | 2.3 | 236 | 180 | 30 | 142 | 301 | 473 | 292 | 247 | 4 | 18 | 80 | |
| YZO-12-6 | 12 | 1 | 2.1 | 260 | 150 | 25 | 135 | 350 | 420 | 320 | 240 | 4 | 27 | 82 | |
| YZO-20-6 | 20 | 2 | 4.1 | 270 | 224 | 30 | 163 | 370 | 520 | 330 | 298 | 4 | 20 | 142 | |
| YZO-30-6 | 30 | 2.5 | 5.75 | 326 | 184 | 35 | 195 | 425 | 530 | 400 | 306 | 4 | 30 | 180 | |
| YZO-50-6 | 50 | 3.7 | 7.4 | 326 | 184 | 35 | 195 | 425 | 550 | 400 | 300 | 4 | 30 | 200 | |
| YZO-75-6 | 75 | 5.5 | 11 | 440 | 248 | 37 | 240 | 512 | 650 | 530 | 400 | 4 | 36 | 370 | |
