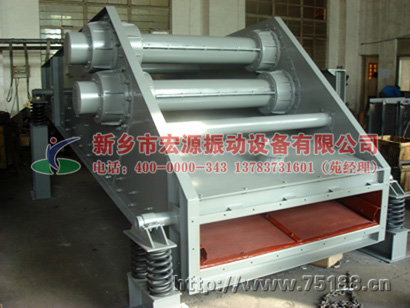

ZKR直線振動篩
ZKR型直線振動篩產品廣泛應用于化工、食品、塑料、醫藥、冶金、玻璃、建材、糧食、化肥、磨料、陶瓷等行業中干式粉狀或顆粒狀物料的篩分。
ZKR type linear vibrating screen products are widely used in chemical, food, plastics, medicine, metallurgy, glass, building materials, food, chemical fertilizer, abrasive, ceramic and other industries dry type sieving powder or granular materials
ZKR型直線振動篩采用雙振動電機驅動,當兩臺振動電機做同步、反缶旋轉時，其偏心塊所產生的激振力在平行于電機軸線的方向相互抵消，在垂直于電機軸的方向疊為一合力，因此篩機的運動軌跡為一直線。其兩電機軸相對篩面有一傾角，在激振力和物料自重力的合力作用下，物料在篩面上被拋起跳躍式向前作直線運動，從而達到對物料進行篩選和分級的目的。 可用于流水線中實現自動化作業。具有能耗低、效率高、結構簡單、易維修、全封閉結構無粉塵溢散的特點。最高篩分目數400目，可篩分出7種不同粒度的物料。
ZKR直線篩篩分精度高、處理量大、結構簡單、耗能少、噪音低、篩網使用壽命長、密封性好、極少粉塵溢散、維修方便、可用于流水線生產中的自動化作業。
ZKR type linear vibrating screen with double vibration motor drive,when the two vibrating motors works synchronization and do not help rotates, the vibration force produced by eccentric block in parallel to the direction of the motor axis offset each other, in the fold is perpendicular to the direction of the motor shaft for a resultant force, so the trajectories of screen machine for a straight line.The two motor shaft relative screen surface has a angle, the vibration force and material since the gravitational force, under the action of the material on the screen was thrown up by leaps and bounds ahead for linear motion, so as to achieve the purpose of the screening and grading the supplies.Can be used in the assembly line automation in operation.Low energy consumption, high efficiency, simple structure, easy maintenance, fully closed structure, no dust overflow scattered characteristics.Highest screen mesh 400 mesh, screening out 7 in different particle size of materials.
ZKR linear screen screening of high precision, large capacity, simple structure, less energy consumption, low noise, long duration, good sealing, little dust overflow scattered, convenient maintenance, in the production of automation can be used in the assembly line.
ZKR type linear vibrating screen products are widely used in chemical, food, plastics, medicine, metallurgy, glass, building materials, food, chemical fertilizer, abrasive, ceramic and other industries dry type sieving powder or granular materials
ZKR直線篩篩分精度高、處理量大、結構簡單、耗能少、噪音低、篩網使用壽命長、密封性好、極少粉塵溢散、維修方便、可用于流水線生產中的自動化作業。
ZKR type linear vibrating screen with double vibration motor drive,when the two vibrating motors works synchronization and do not help rotates, the vibration force produced by eccentric block in parallel to the direction of the motor axis offset each other, in the fold is perpendicular to the direction of the motor shaft for a resultant force, so the trajectories of screen machine for a straight line.The two motor shaft relative screen surface has a angle, the vibration force and material since the gravitational force, under the action of the material on the screen was thrown up by leaps and bounds ahead for linear motion, so as to achieve the purpose of the screening and grading the supplies.Can be used in the assembly line automation in operation.Low energy consumption, high efficiency, simple structure, easy maintenance, fully closed structure, no dust overflow scattered characteristics.Highest screen mesh 400 mesh, screening out 7 in different particle size of materials.
ZKR linear screen screening of high precision, large capacity, simple structure, less energy consumption, low noise, long duration, good sealing, little dust overflow scattered, convenient maintenance, in the production of automation can be used in the assembly line.
ZKR直線振動篩技術參數
Parameters| 型號 | 篩面層數 | 篩網面積(㎡) | 篩孔尺寸 | 最大給料粒度 | 處理能力(m3/h) | 振動頻率(Hz) | 雙振幅 | 電機功率 |
|---|---|---|---|---|---|---|---|---|
| ZKR1230 | 1 | 3.6 | 0.25～13 | 150 | 5～40 | 16 | 7～9 | 5.5×2 |
| 2ZKR1230 | 2 | 3.6×2 | 0.25～13 | 150 | 5～40 | 5.5×2 | ||
| ZKR1445 | 1 | 6.3 | 0.25～50 | 300 | 10～210 | 7.5×2 | ||
| 2ZKR1445 | 2 | 6.3×2 | 0.25～50 | 300 | 10～210 | 11×2 | ||
| ZKR1645 | 1 | 7.2 | 0.25～50 | 300 | 14～250 | 11×2 | ||
| 2ZKR1645 | 2 | 7.2×2 | 0.25～50 | 300 | 14～250 | 15×2 | ||
| ZKR1652 | 1 | 8.4 | 0.25～50 | 250 | 90～270 | 11×2 | ||
| 2ZKR1652 | 2 | 8.5 | 0.25～50 | 250 | 90～270 | 15×2 | ||
| ZKR1845 | 1 | 8.1 | 0.25～50 | 300 | 18～324 | 15×2 | ||
| 2ZKR1845 | 2 | 8.1×2 | 0.25～50 | 300 | 18～324 | 18.5×2 | ||
| ZKR2045 | 1 | 9 | 0.25～50 | 300 | 21～360 | 18.5×2 | ||
| 2ZKR2045 | 2 | 9×2 | 0.25～50 | 300 | 21～360 | 22×2 | ||
| ZKR2060 | 1 | 12 | 0.25～50 | 300 | 24～480 | 18.5×2 | ||
| 2ZKR2060 | 2 | 12×2 | 0.25～50 | 300 | 24～480 | 22×2 | ||
| ZKR2445 | 1 | 10.8 | 0.25～50 | 300 | 21～432 | 22×2 | ||
| 2ZKR2445 | 2 | 10.8×2 | 0.25～50 | 300 | 21～432 | 22×2 | ||
| ZKR2452 | 1 | 12.6 | 0.25～50 | 300 | 25～504 | 22×2 | ||
| 2ZKR2452 | 2 | 12.6×2 | 0.25～50 | 300 | 25～504 | 22×2 | ||
| ZKR2460 | 1 | 14.4 | 0.25～50 | 300 | 27～540 | 22×2 | ||
| 2ZKR2460 | 2 | 14.4×2 | 0.25～50 | 300 | 27～540 | 22×2 | ||
| ZKR3045 | 1 | 13.5 | 0.25～50 | 300 | 31～630 | 22×2 | ||
| 2ZKR3045 | 2 | 13.5×2 | 0.25～50 | 300 | 31～630 | 30×2 | ||
| ZKR3052 | 1 | 15.6 | 0.25～50 | 300 | 36～720 | 30×2 | ||
| 2ZKR3052 | 2 | 15.6×2 | 0.25～50 | 300 | 36～720 | 30×2 | ||
| ZKR3060 | 1 | 18 | 0.25～50 | 300 | 32～648 | 30×2 | ||
| 2ZKR3060 | 2 | 18×2 | 0.25～50 | 300 | 32～648 | 30×2 | ||
| ZKR3645 | 1 | 16.2 | 0.25～50 | 300 | 37～756 | 30×2 | ||
| 2ZKR3645 | 2 | 16.2×2 | 0.25～50 | 300 | 37～756 | 37×2 | ||
| ZKR3652 | 1 | 18.9 | 0.25～50 | 300 | 42～846 | 30×2 | ||
| 2ZKR3652 | 2 | 18.9×2 | 0.25～50 | 300 | 42～846 | 37×2 | ||
| ZKR3660 | 1 | 21.6 | 0.25～50 | 300 | 54～1080 | 30×2 | ||
| 2ZKR3660 | 2 | 21.6×2 | 0.25～50 | 300 | 54～1080 | 37×2 |
