YJZ振動電機
YJZ系列激振電動機為各類振動機械通用激振源，適用于各類機械，如振動給料機、振動輸送機、振動干燥機、振動落砂機、振動篩分機等，廣泛用于冶金、礦山、煤炭、化工、輕工、制藥、食品、水力、電力、建材、鑄造等部門。 使用條件 環境溫度為-20～+40℃；海拔不超過1000m；電源為3相380V，50HZ;工作方式為連續工作定額。 激振電動機的外客防護等級為IP54，可在任何無特殊要求的粉塵條件下工作。
YJZ series excitation motor general vibration source for all kinds of mechanical vibration, suitable for all kinds of machinery, such as vibrating feeder, vibrating conveyor, vibrating dryer, vibration shakeout machine, vibrating screen extension, etc., are widely used in metallurgy, mining, coal, chemical industry, light industry, pharmacy, food, water, electricity, building materials, casting and other departments.Using conditions of the environment temperature is 20 ~ + 40 ℃;Altitude does not exceed 1000 m;Power supply for 3 phase 380 v, 50 hz;Work quota for continuous work.B: vibration motor of the outside covering crust protection class is IP54, made available in any dust work under the conditions of no special requirements.
2.耐振能力強，可在19.6m/S2的振動加速度下運行。
3.起動迅速，停車平穩。
4.全封閉結構，可在任何無防爆要求的粉塵環境下工作。
5.激振力無級可調，使用方便。
6.軸承潤滑選用特殊的耐高溫、耐磨油脂、并采用了可靠的防塵密封裝置，長期使用能保證良好的潤滑效果和長的使用壽命。
7.電機接線盒內填充有耐油、耐水、耐老化、絕緣性能良好的不干性填料，因此使用安全、可靠。
8.可多機組合成各種振動形式，以完成各種作業要求。
9.規格齊全，振次有3000、1500、1000r/min,激振力從1~160KN，能滿足各種振動機械的工作需要。
Characteristic
1. This series motors are compared with T01 system, small volume, light weight.
2. The shock resistant capability is strong, can run under the vibration acceleration of 19.6 m/S2.
3. Start rapidly and smooth parking.
4. The product is fully closed structure, can work in any kind of explosion-proof requirements of dust environment.
5. The excitation stepless adjustable, easy to use.
6. Bearing lubrication use special high temperature resistant, wear-resisting, oil, and used the reliable dustproof sealing device, long-term use can guarantee good lubrication effect and long service life.
7. The motor terminal box filled with oil resistance, water resistance, aging resistance, good insulation performance of stem packing, so the use of safe and reliable.
8. Unit can be more than the synthesis of various vibration mode, to complete the various requirements.
9. Complete specifications, the vibration time is 3000, 1500, 1000 r/min, the excitation from 1 ~ 160 kn, can meet the needs of the various vibration mechanical work.
YJZ series excitation motor general vibration source for all kinds of mechanical vibration, suitable for all kinds of machinery, such as vibrating feeder, vibrating conveyor, vibrating dryer, vibration shakeout machine, vibrating screen extension, etc., are widely used in metallurgy, mining, coal, chemical industry, light industry, pharmacy, food, water, electricity, building materials, casting and other departments.Using conditions of the environment temperature is 20 ~ + 40 ℃;Altitude does not exceed 1000 m;Power supply for 3 phase 380 v, 50 hz;Work quota for continuous work.B: vibration motor of the outside covering crust protection class is IP54, made available in any dust work under the conditions of no special requirements.
YJZ振動電機特點
1.該系列電機與T01系統相比，體積小、重量輕。2.耐振能力強，可在19.6m/S2的振動加速度下運行。
3.起動迅速，停車平穩。
4.全封閉結構，可在任何無防爆要求的粉塵環境下工作。
5.激振力無級可調，使用方便。
6.軸承潤滑選用特殊的耐高溫、耐磨油脂、并采用了可靠的防塵密封裝置，長期使用能保證良好的潤滑效果和長的使用壽命。
7.電機接線盒內填充有耐油、耐水、耐老化、絕緣性能良好的不干性填料，因此使用安全、可靠。
8.可多機組合成各種振動形式，以完成各種作業要求。
9.規格齊全，振次有3000、1500、1000r/min,激振力從1~160KN，能滿足各種振動機械的工作需要。
Characteristic
1. This series motors are compared with T01 system, small volume, light weight.
2. The shock resistant capability is strong, can run under the vibration acceleration of 19.6 m/S2.
3. Start rapidly and smooth parking.
4. The product is fully closed structure, can work in any kind of explosion-proof requirements of dust environment.
5. The excitation stepless adjustable, easy to use.
6. Bearing lubrication use special high temperature resistant, wear-resisting, oil, and used the reliable dustproof sealing device, long-term use can guarantee good lubrication effect and long service life.
7. The motor terminal box filled with oil resistance, water resistance, aging resistance, good insulation performance of stem packing, so the use of safe and reliable.
8. Unit can be more than the synthesis of various vibration mode, to complete the various requirements.
9. Complete specifications, the vibration time is 3000, 1500, 1000 r/min, the excitation from 1 ~ 160 kn, can meet the needs of the various vibration mechanical work.

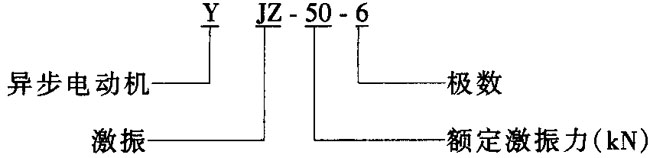

YJZ振動電機技術參數
Parameters|
型號
|
激振力/KN
|
功率/ KW
|
同步轉速/（r/min）
|
定子電流/A
|
重量/kg
|
|
YJZ-1-2
YJZ-2-2
YJZ-3-2
YJZ-5-2
YJZ-10-2
YJZ-20-2
YJZ-30-2
YJZ-50-2
|
1
2
3
5
10
20
30
50
|
0.09
0.18
0.25
0.37
0.75
1.50
2.20
3.70
|
3000
|
0.32
0.59
0.77
1.00
1.92
3.60
5.10
10.00
|
10
16
20
35
45
80
120
20
|
|
YJZ-1-4
YJZ-3- 4
YJZ-5-4
YJZ-10-4
YJZ-20-4
YJZ-30-4
YJZ-50-4
YJZ-75-4
YJZ-100-4
|
2
3
5
10
20
30
50
75
100
|
0.12
0.18
0.25
0.55
1.10
1.50
2.20
3.70
6.30
|
1500
|
0.46
0.55
0.86
1.87
2.85
3.82
5.55
8.86
14.91
|
20
30
40
65
110
140
200
280
410
|
|
YJZ-3-6
YJZ-5-6
YJZ-13-6
YJZ-18-6
YJZ-25-6
|
3
5
13
18
25
|
0.25
0.37
0.75
1.10
1.50
|
1000
|
0.80
1.10
1.90
2.50
3.70
|
35
60
84
90
170
|
|
YJZ-36-6
YJZ-50-6
YJZ-75-6
YJZ-100-6
YJZ-140-6
|
36
50
75
100
140
|
2.20
3.70
5.50
7.50
10.00
|
1000
|
4.86
8.70
12.3
17.80
23.72
|
230
310
450
600
670
|
|
YJZ-5-8
YJZ-10-8
YJZ-20-8
YJZ-30-8
YJZ-50-8
YJZ-75-8
YJZ-100-8
YJZ-140-8
|
5
10
20
30
50
75
100
140
|
0.37
0.75
1.50
2.20
3.70
5.50
7.50
10.00
|
750
|
1.73
2.79
4.93
6.72
9.77
14.1
17.62
23.70
|
80
135
200
300
450
650
750
850
|

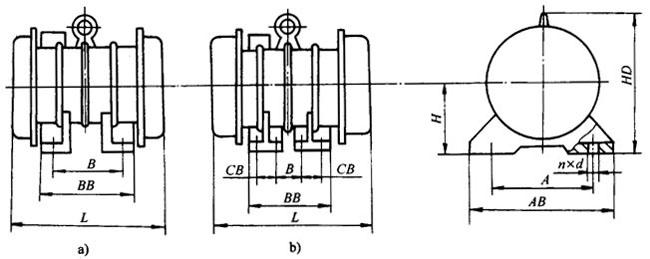

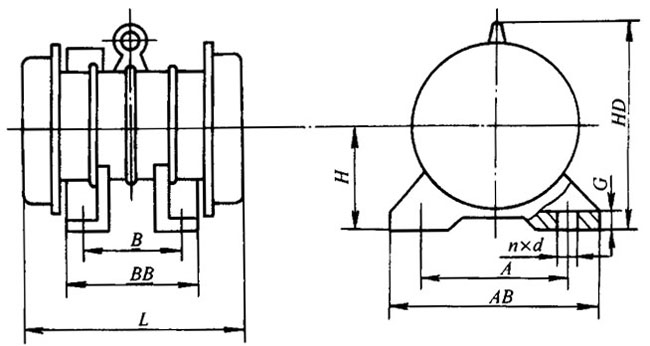

| 型號 | A | B | n×d | d | H | G | AB | BB | HD | L |
| YJZ1-2 | 120 | 80 | 4×φ10 | φ1.0 | 65 | 10 | 145 | 70 | 170 | 200 |
| YJZ3-2 | 150 | 80 | 4×φ14 | 90 | 14 | 180 | 130 | 200 | 230 | |
| YJZ2-2 | 150 | 80 | 4×φ14 | 90 | 14 | 180 | 130 | 200 | 260 | |
| YJZ5-2 | 180 | 110 | 4×φ18 | 100 | 16 | 240 | 170 | 220 | 330 | |
| YJZ10-2 | 180 | 110 | 4×φ18 | 100 | 16 | 240 | 170 | 220 | 390 | |
| YJZ20-2 | 260 | 150 | 4×φ26 | 145 | 24 | 325 | 214 | 295 | 480 | |
| YJZ30-2 | 310 | 170 | 4×φ33 | φ1.5 | 160 | 28 | 380 | 280 | 363 | 520 |
| YJZ50-2 | 350 | 220 | 4×φ35 | 190 | 33 | 430 | 350 | 385 | 580 |
| 型號 | A | B | CB | n×d | d | H | G | AB | BB | HD | L | 結構圖 |
| YJZ2-4 | 150 | 80 | — | 4×φ14 | φ1.0 | 90 | 14 | 180 | 130 | 200 | 240 | a |
| YJZ3-4 | 150 | 80 | — | 4×φ14 | 90 | 14 | 180 | 130 | 200 | 250 | a | |
| YJZ5-4 | 180 | 110 | — | 4×φ18 | 100 | 16 | 240 | 170 | 220 | 330 | a | |
| YJZ10-4 | 220 | 140 | — | 4×φ22 | 120 | 18 | 270 | 200 | 250 | 390 | a | |
| YJZ20-4 | 260 | 150 | — | 4×φ26 | φ1.5 | 145 | 24 | 325 | 214 | 295 | 480 | a |
| YJZ30-4 | 310 | 170 | — | 4×φ33 | 160 | 28 | 380 | 280 | 363 | 530 | a | |
| YJZ75-4 | 350 | 220 | — | 4×φ35 | 190 | 33 | 430 | 350 | 385 | 590 | a | |
| YJZ100-4 | 380 | 125 | — | 4×φ35 | 210 | 35 | 480 | 364 | 447 | 650 | b | |
| YJZ3-6 | 180 | 110 | — | 4×φ18 | φ1.0 | 100 | 16 | 240 | 170 | 220 | 375 | a |
| YJZ5-6 | 220 | 140 | — | 4×φ22 | 120 | 18 | 270 | 200 | 250 | 400 | a | |
| YJZ8-6 | 260 | 150 | — | 4×φ26 | 145 | 24 | 325 | 214 | 295 | 497 | a | |
| YJZ10-6 | — | |||||||||||
| YJZ15-6 | 310 | 170 | — | 4×φ33 | φ1.5 | 160 | 28 | 380 | 280 | 363 | 600 | a |
| YJZ30-6 | 350 | 220 | — | 4×φ35 | 190 | 33 | 430 | 350 | 385 | 648 | a | |
| YJZ50-6 | 380 | 250 | — | 4×φ35 | 210 | 35 | 480 | 364 | 447 | 699 | a | |
| YJZ75-6 | 440 | 280 | — | 4×φ45 | 240 | 35 | 545 | 380 | 497 | 730 | a |
