ZDS系列振動電機

ZDS振動電機詳細介紹：絕緣等級:B 防護等級:IP55 電壓:380V 相數:3相激振力調節范圍:0-最大定額:連續
ZDS vibration motor in detail: the insulation class: B protection grade: IP55 voltage: 380 v phase number: 3 phase excitation adjustment range: 0 - the biggestquota: continuous ZDS振動電機

ZDS振動電機特點
設計先進、重量輕、體積小、使用和維修方便。利用平穩回轉產生振動，激振效率高，噪聲低，使用壽命長。全封閉結構，可在任何無防爆要求的粉塵條件下工作。只需調節偏心塊夾角，可無級調整激振力。可多機組合成各種振動形式，以完成各種作業要求。規格齊全，能滿足各類振動機械的工作需要。

Features
Advanced design, light weight, small volume, convenient use and maintenance.Vibration generated by steady rotating excitation with high efficiency, low noise, long service life.Fully closed structure and can be in any kind of dust explosion-proof requirements under the working conditions.Only need to adjust the Angle of the eccentric block, stepless adjustment of vibration force.Unit can be more than the synthesis of various vibration mode, in order to complete a variety of requirements.Complete specifications, can meet the needs of the work of all kinds of mechanical vibration.

ZDS振動電機產品質量

ZDS振動電機可以在高負荷下連續運轉，使用壽命長，高品質的制造材料，保證其可靠性。可以承受高溫工作條件的防震電機線圈；功率儲備高；具備高承載能力的特殊軸承；特殊油脂可持久潤滑；高強度的鑄機座。

Product Quality
ZDS vibration motor can be continuous operation under high load, long service life, the manufacture of high quality material, ensure its reliability.Can work under high temperature conditions of shockproof motor coil;High power reserves;Have special bearing high carrying capacity;Special grease can be permanent lubrication;High strength casting base.

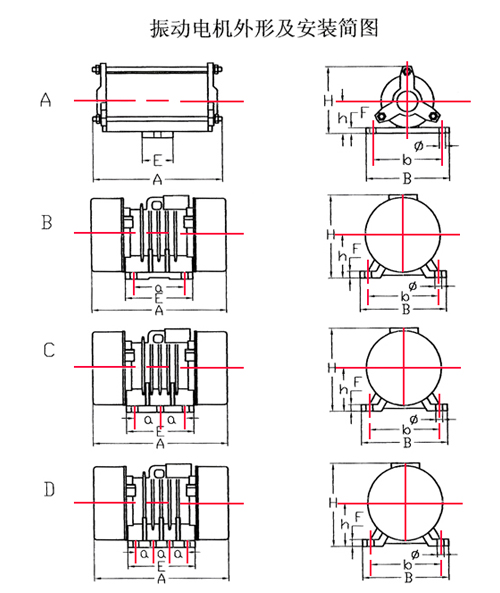

ZDS系列振動電機技術參數、外形尺寸

Parameters and bounday dimension

型號	振次	激振力	功率	電流	重量	圖號	A	B	H	h	a	b	φ	E	F
	r/min	N	Kw	A	Kg		mm	mm	mm	mm	mm	mm	mm	mm	mm
ZDS-0.6-2	2800	650	0.05	0.2	4	A	168	120	97	46		100	9	40	8
ZDS-1.5-2	2860	1500	0.1	0.3	12	B	255	160	156	80	40	130	11	100	15
ZDS-2-2	2860	2000	0.15	0.5	12	B	255	160	156	80	40	130	11	100	15
ZDS-5-2	2860	5000	0.37	1.1	24	B	285	185	190	90	120	150	13	150	30
ZDS-10-2	2860	10000	0.75	1.96	36	B	425	210	226	110	130	170	17	170	25
ZDS-20-2	2860	20000	1.5	3	80	B	480	320	285	135	190	260	25	250	30
ZDS-30-2	2860	30000	2.2	4.65	100	B	590	380	320	146	160	310	33	260	25
ZDS-50-2	2860	50000	3.7	7.5	205	B	665	460	390	195	250	380	38	340	35

ZDS-2-4	1450	2000	0.12	0.37	16	B	280	160	180	80	40	130	11	100	15
ZDS-2.5-4	1450	2500	0.2	0.62	24	B	350	185	190	90	120	150	13	150	30
ZDS-5-4	1450	5000	0.4	1.21	36	B	390	210	226	110	130	170	13	170	25
ZDS-10-4	1450	10000	0.75	2.25	62	B	460	270	270	120	160	220	21	220	25
ZDS-20-4	1450	20000	1.1	2.76	85	B	530	320	285	135	190	260	25	250	30
ZDS-30-4	1450	30000	1.5	3.3	130	B	540	350	340	163	180	280	33	250	30
ZDS-50-4	1450	50000	2.2	6.68	180	B	580	390	340	165	160	310	38	286	30
ZDS-80-4	1450	80000	3.7	8.7	260	C	710	460	380	195	125	380	38	364	35

ZDS-2.5-6	960	2500	0.2	0.69	25	B	350	185	190	90	120	150	13	150	30
ZDS-5-6	960	5000	0.4	1.18	40	B	390	210	226	110	130	170	13	170	25
ZDS-10-6	960	10000	0.75	2.2	75	B	510	310	285	140	160	220	21	220	25
ZDS-13-6	960	13000	0.8	2.32	81	B	510	310	285	140	165	250	25	220	25
ZDS-18-6	960	18000	1.1	3	115	B	530	320	315	163	190	260	25	250	25
ZDS-20-6	960	20000	1.5	3.5	125	B	530	320	315	163	190	260	25	250	25
ZDS-25-6	960	25000	1.5	3.92	145	B	540	350	340	163	180	280	33	250	30
ZDS-30-6	960	30000	2.2	4.9	155	B	540	350	340	163	180	280	33	250	30
ZDS-36-6	960	36000	2.2	5.52	175	B	600	380	360	190	225	310	33	285	35
ZDS-40-6	960	40000	3	6.5	190	B	600	380	360	190	225	310	33	285	35
ZDS-50-6	960	50000	3.7	9.15	290	B	710	460	390	195	250	380	38	340	35
ZDS-75-6	960	75000	5.5	12.2	372	C	770	480	440	210	125	380	38	370	38
ZDS-100-6	960	100000	7.5	17.9	480	C	830	460	470	230	140	380	38	430	35
ZDS-130-6	960	130000	9.5	21.7	620	C	880	550	500	250	140	460	45	440	40
ZDS-160-6	960	160000	12	24.8	740	D	1040	550	500	250	118	460	38	500	40
ZDS-180-6	960	180000	14	31.9	760	D	1000	610	540	270	120	520	45	525	40
ZDS-220-6	960	22000	18	34.5	1040	D	1050	665	580	295	140	560	45	585	45

ZDS-200-8	740	200000	15	35	1090	D	1110	610	605	305	140	520	45	580	40
ZDS-32-4	1450	10000	0.8	3	60	B	420	230	235	120	170	180	18	220	25
