K型往復式給料機

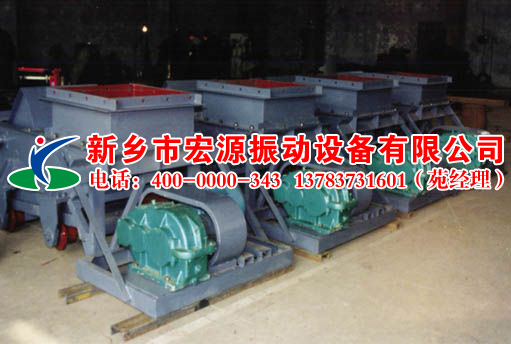

K型往復式給料機（往復式給煤機）產品概述
K型往復式給料機（往復式給煤機）是利用曲柄連桿機構拖動下傾5度的底板在輥上做直線往復運動,從而把煤或其它磨琢性小,粘性不大的松散粒狀、粉狀物料從給料設備中均勻地卸到受料設備中。K型往復式給料機適用于礦山、礦井、選煤廠、中轉站、輸煤車間、港口散料碼頭等散料轉運，可將散料經料倉或直接進行均勻的轉載到膠帶機或其它篩選設備、貯存裝置上配合使用。實現對礦石、砂煤、糧食等散裝物料的均勻給料。本設備機體安裝于料斗下，傳動裝置為懸掛式，根據給料量的大小可分：K1、K2、K3、K4等幾種型號。
Product overview
K type reciprocating feeder (reciprocating coal feeder) is 5 degrees using the drag downdip crank connecting rod mechanism of bottom plate on rollers linear reciprocating motion, thus grinding coal or other small cut sex, not viscous loose granular, powdery materials from feeding device evenly discharged to the feeding device.
K type reciprocating feeder is suitable for the mine, mine, coal preparation plant, station, coal plant, port bulk terminals, such as bulk transportation, bulk can be through the bunker or homogeneous transfer directly to the adhesive tape machine or other screening equipment, the storage device.Implementation of ore, sand, coal, grain and other bulk materials evenly feeding.This equipment is installed on the hopper body, the transmission device for hanging, according to the size of the quantificationally can be divided into: K1, K2, K3, K4, etc. Several kinds of models.
K型往復式給料機（往復式給煤機）產品工作原理
K型往復式給料機是由機架、底板(給料槽)傳動平臺、漏斗閘門、托輥等組成。其傳動原理：當電動機開動后，經彈性聯軸器、減速器、曲柄連桿機構拖動傾斜的底板在插輥上作直線往復運動，將煤均勻地卸到運輸機械或其它篩選設備上。該機設有帶漏斗、帶調節閥門和不帶漏斗、不帶調節閥門兩種形式。Working principles
K type reciprocating feeder is made up of frame, floor (feeding trough) transmission platform, funnel gate, rollers, etc.After its transmission principle: when the motor running, the elastic coupling, speed reducer, connecting rod drag sloping floor in rolls on a straight line reciprocating movement, the coal evenly discharged to the transport machinery, or other screening equipment.The machine is equipped with a funnel, with regulating valve and without a funnel, with no regulating valve in two forms.
K型往復式給料機（往復式給煤機）產品主要特點
Features

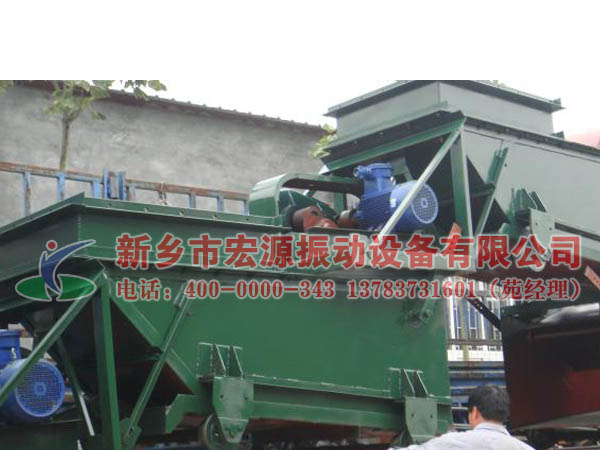

往復式給料機裝車
2、重量輕、體積小、結構簡單，調節安裝、維護、保養更方便；
3、整機采用封閉式框架結構制作，大大提高了機架的剛度和堅固性能；
4、裝有限矩型液力偶合器，能滿載啟動、過載保護；
5、最大給料量可達1200噸/小時（煤），是目前國內最大的往復式給料機；
6、采用了先進的平面二次包絡環面騾桿減速器設計，承載能力大，傳動效率高；
7、側襯板、斜襯板與底板之間留縫可調，能比較準確地控制留縫大小，大大減少了漏料。
8、驅動裝置對稱布置，并采用雙推桿，使整機受力均衡，傳動平穩，消除了底板往復給料時運轉的扭擺現象。
9、底板有立向筋板，并用三道通長托輥支承，保證了底板本身剛度，消除了現有往復式給料機底板工作中彎曲變形的弊病。
10、襯板由小塊耐磨鋼板拼成，這樣不僅更換時輕便容易，而且可以根據實際磨損情況，有針對性地更換磨損了的襯板塊，從而使材料合理利用，降低維修費用。
1, safe and reliable operation and machine service life is long;
2, light weight, small volume, simple structure, adjust the installation, maintenance, maintenance more convenient;
3, make the whole machine adopts closed frame structure, which greatly improves the rigidity of frame and firm performance;
4, with limited torque type hydraulic coupling, can start load, overload protection;
5, quantificationally biggest can reach 1200 tons/hour (coal), is currently the largest reciprocating feeder;
6, adopting the advanced planar quadratic enveloping torus mule rod speed reducer design, large carrying capacity, high transmission efficiency;
7, side plate, inclined seam between the plate and the bottom is adjustable, can more accurately control the size of seam, greatly reducing the leakage of material.
8, drive symmetrical layout, and adopts double push rod, so the force equilibrium, smooth transmission, eliminating the backplane reciprocating feeding operation twist phenomenon.
9, floor has made to the reinforcing plate, and three long roller bearing, ensure the floor stiffness, eliminates the existing reciprocating feeder plate bending deformation in the work.
10, lining board is made of the small piece of steel plate together, not only change when the light is easy, and may, according to the actual wear and tear, targeted to replace worn lining plate, making rational utilization of materials, reduce the maintenance cost.
K型往復式給料機（往復式給煤機）技術參數表
Parameters
| 型號規格 | K--0 | K--1 | K--2 | K--3 | K--4 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
給料 能力 （t/h） |
底板行程 |
曲柄 位置 |
無煙煤 | 煙煤 | 無煙煤 | 煙煤 | 無煙煤 | 煙煤 | 無煙煤 | 煙煤 | 無煙煤 | 煙煤 | |
|
200 150 100 50 |
4 3 2 1 |
100 75 50 25 |
90 67 45 22 |
150 112 75 38 |
135 100 68 34 |
225 170 115 34 |
200 150 100 50 |
330 247 165 83 |
300 220 150 75 |
590 440 295 148 |
530 395 268 132 |
||
| 曲柄轉速(r/min) | 57 | 57 | 57 | 62 | 62 | ||||||||
|
電 動 機 |
型號 |
YB160M1-8 (Y160M1-8) |
YB160M1-8 (Y160M1-8) |
YB160M1-8 (Y160M1-8) |
YB160M1-6 (Y160M1-6) |
YB200L1-6 (Y200L1-6) |
|||||||
| 功率(Kw) | 4 | 4 | 4 | 7.5 | 18.5 | ||||||||
| 轉速(r/min) | 720 | 720 | 720 | 970 | 970 | ||||||||
| 減速機 |
型號 速比 |
JZQ-350 12.64 |
JZQ-350 12.64 |
JZQ-350 12.64 |
JZQ-400 15.75 |
JZQ-500 15.75 |
|||||||
|
允許最大 粒度 |
含量10%以下 含量10%以下 |
250 200 |
350 300 |
400 350 |
500 450 |
700 550 |
|||||||
|
設備重量 (mm) |
帶料斗 不帶料斗 |
1127 1026 |
1251 1144 |
1481 1342 |
1927 1735 |
2737 2505 |
|||||||
K型往復式給料機（往復式給煤機）安裝及使用
1、往復式給料機是固定安裝在儲料倉口下,在安裝前需要確定水平位置,將機架與倉口用螺栓緊固,然后再將傳動平臺安放在正確位置上,H形架與機架,傳動平臺焊牢,減速機、電動機找正安裝,調節適當,用螺栓緊固；
2、安裝后需要進行空負荷試車,運轉當中,檢查各部件工作是否正常,滾動軸承最高溫升不得高于60℃；
3、依據卸料要求調節生產率時,將曲柄部位銷軸拔出,松動螺母,轉動曲柄殼的位置“1、2、3、4”選擇固定,將銷軸插入,聯結曲柄與曲柄殼,緊固銷軸和螺母,調整完畢后再開車。
Installation and usage
1, reciprocating feeder is installed under the surge bin mouth, need to determine the horizontal position before installation, the frame and bolt, positions and then installing transmission platform in the correct position, H shape and frame, transmission platform weld, reducer, motor is installed, adjust appropriately, with bolts;
Need to empty load test after 2, installation, operation, check whether the various parts work is normal, rolling bearing the highest temperature rise shall not be higher than 60 ℃;
3, accordance with the requirements of discharge when adjusting the productivity, pull out parts of crank pin shaft, loose nut, the position of the crank case "1, 2, 3, 4" select fixed, insert the pin shaft, coupling crank and a crank shell, fastening pin and nut, after the adjustment to drive again.
K型往復式給料機（往復式給煤機）訂貨須知
Ordering instructions
1.簽訂合同時請寫明型號規格、配何種電機、減速機、是否帶漏斗和調節閘門；
2.隨機技術文件：產品合格證、設備清單、產品使用說明書。
1. Please specify when signing a contract specifications, with what kind of motor, reducer, whether or not to bring a funnel and regulating valve;
2. The random technical documents, product certification, equipment list and product specification.
★我公司可根據用戶需要設計制造特殊型號規格的給料機。
★我公司對所有技術資料、尺寸保留修改的權利，如實物與文中圖案不符，應以實物為準。
★ My company can design and manufacture according to user needs special specifications of feeder.
★ For all my company reserves the right to modify technical data, size, such as material object does not accord with the design, the material shall prevail.
